In highly regulated industries such as pharmaceuticals and biotechnology, “sterility” is an uncompromisable quality threshold. From production equipment and process pipelines to raw material storage tanks, the sterilization effect of every link directly relates to drug safety and compliance qualifications. As a technology-driven enterprise deeply rooted in the industry, SKE&Eagle proudly launches its Pure Steam Generator—a trusted choice for pharmaceutical companies’ sterilization needs, backed by three core advantages: ultra-high purity, full-process compliance, and high efficiency & energy savings!

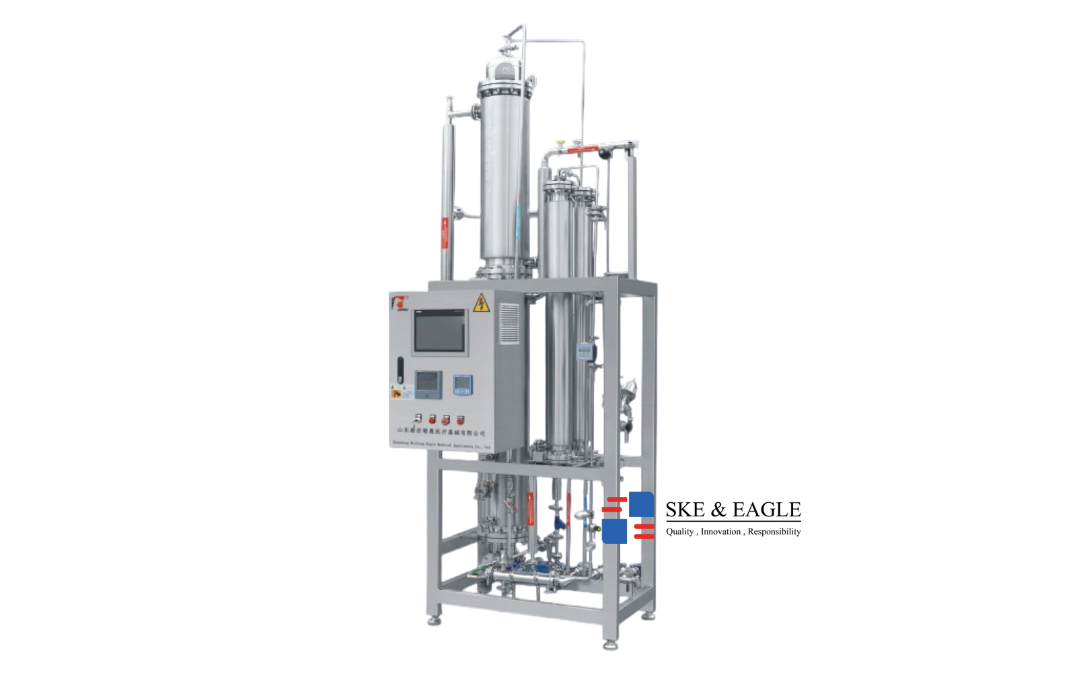

Core Product Positioning: Crafting Ultra-Pure Steam from Purified Water
Wide Application Scenarios: Covering Full-Process Pharmaceutical Sterilization Needs
Whether it’s critical pharmaceutical equipment (such as reactors and automatic filling machines), hygienic production pipelines, API storage tanks, finished drug containers, or process lines for biological products and sterile preparations, SKE&Eagle’s Pure Steam Generator delivers stable and reliable pure steam supply for efficient sterilization. It adapts to full-scene needs from laboratory-scale to large-scale production, helping enterprises meet international and domestic regulatory requirements such as GMP.
Top 10 Core Advantages: Technology Empowers Compliance Without Worries

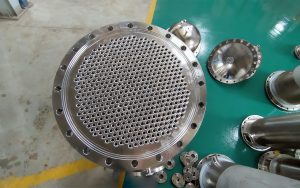

- Pollution-Proof Structure: The evaporator, preheaters, and condenser all adopt a double-tube sheet design with inner tube sheet expansion + outer welding technology, eliminating cross-contamination structurally.
- Premium Material Assurance: All parts in contact with raw water, pure steam, and condensed water are made of SS316L stainless steel, featuring strong corrosion resistance to ensure steam purity.
- Efficient Thermal Insulation & Energy Savings: Key components are equipped with aluminum silicate needle-punched blanket insulation layers—lightweight, excellent thermal insulation, and reduced heat loss. Combined with waste heat recovery design (Preheater 2 uses industrial steam condensate for preheating), energy consumption is significantly lowered.
- Precision Surface Treatment: Both internal and external surfaces of the equipment undergo electrochemical polishing, ensuring excellent finish, resistance to scaling and bacterial growth, and meeting hygienic requirements.
- High-Quality Pipeline Design: Priority is given to stainless steel tubes with direct stretch bending to avoid additional welding. For necessary welds, gas-shielded automatic welding (single-side welding with double-side forming) is used, followed by electrochemical polishing to ensure pipeline cleanliness.
- Full-Process Validation Support: Provides complete validation documents including endoscope inspection photos, weld maps, pressure test reports, pickling and passivation reports, and system design files, helping enterprises easily pass compliance audits.

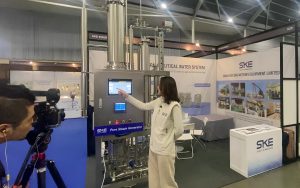

- Intelligent Control System: HMI + PLC full automatic control with an intuitive operation interface, supporting multiple communication modes and three-level authority management to meet the operational needs of different positions.

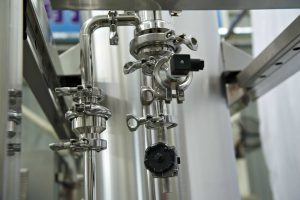

- Real-Time Monitoring & Traceability: Online monitoring of key parameters such as conductivity, temperature, and flow rate. Optional paperless/paper recorders enable parameter recording and printing for full-process traceability.
- Compliance Upgrade Options: Supports electronic signature and electronic record functions with audit trail capabilities, fully complying with GAMP5 and 21 CFR PART 11 requirements.
- Rapid Start-Stop Response: The evaporator and separator form a communicating vessel design for full heat utilization. The equipment can quickly reach maximum production capacity from standby mode, adapting to flexible production needs.
Why Choose SKE&Eagle?
We specialize in fluid handling and sterilization equipment, focusing on “technological innovation + compliance orientation”. Every detail is integrated into product design—from material selection and process optimization to intelligent control and validation support—aiming to provide pharmaceutical enterprises with a “worry-free, reliable, and secure” pure steam solution.
Whether for equipment supporting new production lines or upgrading existing facilities, SKE&Eagle’s Pure Steam Generator can accurately match your needs, helping enterprises improve production efficiency and reduce operating costs while maintaining compliance.
📩 Send us a private message to learn more about product details and customized solutions. Let SKE&Eagle partner with you to build a solid line of defense for drug safety!
