PW Purified Water Generation Systems Guide

Introduction

Purified Water, often called PW, is a critical component in many industries. It is not the same as tap water or drinking water. PW purified water has been treated to remove impurities, minerals, and contaminants. This makes it safe for sensitive applications such as drug manufacturing, medical devices, cosmetics, and food production.

Pharmaceutical companies cannot use regular water. Even small impurities can ruin a product or cause safety problems. This is why PW purified water is required by strict rules from health authorities like the FDA, WHO, and European Medicines Agency.

In this article, you will learn what PW purified water is, how a PW generation system works, and why choosing the right equipment matters. We will also explain the different technologies used in modern systems.

What Exactly Is PW Purified Water?

PW purified water is water that meets specific chemical and microbiological purity standards. It has low levels of ions, organic carbon, particles, and bacteria. According to pharmacopoeias like USP, EP, and JP, PW purified water must pass certain tests.

For example, USP Purified Water has a conductivity limit of 1.3 µS/cm at 25°C. Total Organic Carbon (TOC) must be below 500 ppb. Bacteria count must be under 100 CFU/mL. These numbers show how clean the water must be.

Unlike Water for Injection (WFI), PW purified water does not need to be free of endotoxins for all applications. However, it is still much cleaner than drinking water. Many facilities use PW purified water for rinsing, mixing, cleaning, and as feed water for WFI generation.

Why Is PW Generation System Important?

A PW generation system is a set of equipment that produces PW purified water from feed water. Feed water is usually city water or well water. The system removes impurities step by step until the water reaches the required purity level.

If a PW generation system is poorly designed, the water quality will be unstable. This leads to product failures, rejected batches, and regulatory warnings. A good system ensures reliable, consistent, and cost-effective production of PW purified water.

SKE&EAGLE designs and manufactures PW generation systems that meet global standards. Our systems use proven technologies to achieve high purity while saving energy and reducing waste. We serve pharmaceutical, biotech, and cosmetic companies worldwide.

Key Technologies in a PW Generation System

A modern PW generation system uses several purification steps. Each step targets different types of contaminants. Below are the most common technologies.

1. Pretreatment

Pretreatment protects the main purification units from damage. It includes multimedia filters to remove sand and dirt. Activated carbon filters remove chlorine and organic compounds. Water softeners remove calcium and magnesium to prevent scaling.

Without proper pretreatment, membranes and resins can fail quickly. Pretreatment is the first and very important line of defense.

2. Reverse Osmosis (RO)

Reverse osmosis is the heart of many PW generation systems. RO uses pressure to push water through a special membrane. The membrane blocks salts, bacteria, viruses, and large organic molecules. RO removes 95–99% of total dissolved solids.

A single RO pass may not always reach PW purified water standards. Many systems use double-pass RO or RO followed by continuous electrodeionization (CEDI).

3. Continuous Electrodeionization (CEDI)

CEDI combines ion exchange resins with an electric field. It removes remaining ions to reach very low conductivity. Unlike traditional ion exchange, CEDI does not need chemical regeneration. This makes it cleaner and easier to operate.

RO + CEDI is a common combination for producing PW purified water. The final conductivity can be as low as 0.1 µS/cm, well below the pharmacopoeia limit.

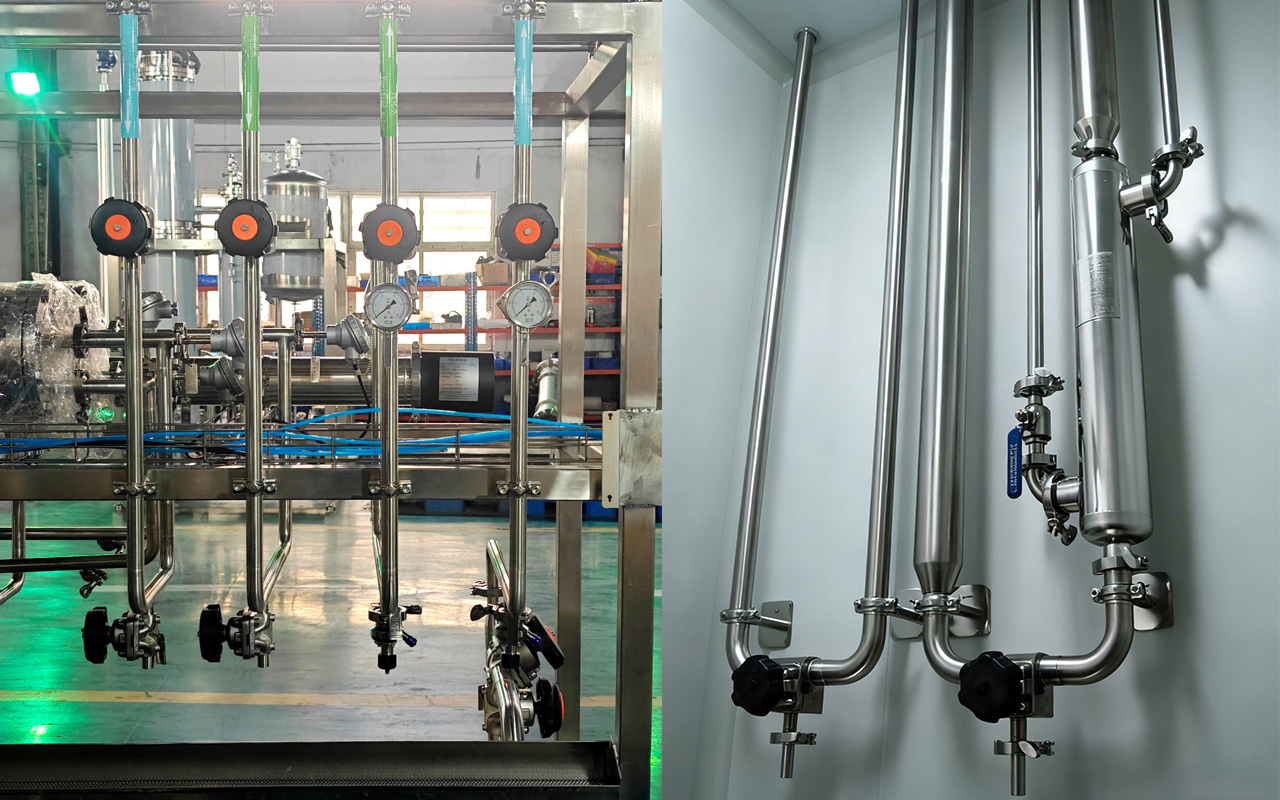

4. Storage and Distribution

After purification, water must be stored in a special tank. The tank is made of stainless steel 316L and has a sanitary design. It is vented through a hydrophobic air filter to keep out airborne contaminants.

The distribution loop pumps water continuously to all use points. The water returns to the tank in a loop. This prevents stagnation, which can allow bacteria to grow. The loop also includes ultraviolet (UV) lights to kill any microorganisms.

Operation and Maintenance Tips

Even the best PW generation system needs regular care. Daily checks include conductivity, flow rate, and pressure. Weekly tasks might include sanitization of the storage tank. Monthly maintenance includes filter changes and calibration of sensors.

Sanitization is critical to control biofilm. Common methods include hot water (80°C or higher) and ozone. Some systems use chemical sanitization. Your choice depends on the materials in your system.

Keep detailed records of all maintenance actions. This helps you spot problems early and proves compliance during inspections.

Comparison of PW Generation Technologies

Common Mistakes When Designing a PW Generation System

Many companies make avoidable mistakes. One common error is undersizing the pretreatment section. This leads to frequent membrane fouling and high operating costs.

Another mistake is forgetting about the distribution loop. Poor loop design causes dead legs where water sits still. Dead legs are breeding grounds for bacteria. All use points should have zero dead legs.

A third mistake is skipping the risk assessment. You must analyze where contaminants could enter the system. Then you add controls at those points.

SKE&EAGLE helps you avoid these mistakes. We use quality by design (QbD) principles to build robust systems.

The Role of PW Purified Water in Pharmaceutical Manufacturing

PW purified water is not just a utility. It is a raw material. It is used to clean equipment, to make solutions, and to rinse products. If PW purified water is contaminated, the final medicine can be unsafe.

For example, an oral syrup uses PW purified water as the main ingredient. If the water has high TOC, the syrup may taste bad or break down faster. If it has bacteria, the product could cause infections.

Therefore, pharmaceutical companies must test their PW purified water regularly. They also must validate their PW generation system to prove it works consistently.

Future Trends in PW Generation Systems

Technology is always improving. New PW generation systems use less energy and produce less reject water. Some systems recover energy from the RO reject stream.

Digital monitoring is also growing. Sensors connected to the internet allow remote checking of water quality. Predictive maintenance alerts you before a part fails.

Electrodeionization continues to improve, with higher flow rates and lower costs. Some modern systems combine RO and CEDI in a single compact skid.

SKE&EAGLE stays at the forefront of these trends. We offer smart PW generation systems with user-friendly touchscreen controls and data logging.

Conclusion

PW purified water is essential for pharmaceutical and many other industries. A well-designed PW generation system ensures consistent water quality, reduces risks, and saves money over time. Reverse osmosis, CEDI, and proper distribution are key technologies.

Choosing the right manufacturer makes a big difference. SKE&EAGLE has years of experience and a strong reputation. Our PW generation systems are reliable, compliant, and efficient. We support you from design through installation and validation.

If you need a new PW generation system or want to upgrade your existing one, contact SKE&EAGLE today. We will help you find the best solution for your needs.

Frequently Asked Questions (FAQ)

1. What is the difference between PW purified water and WFI?

PW purified water has limits on conductivity, TOC, and bacteria. WFI (Water for Injection) has the same limits plus a strict endotoxin limit (< 0.25 EU/mL). WFI is used for injectable products. PW is used for oral products, cleaning, and as feed water for WFI.

2. Can I drink PW purified water?

Technically yes, it is very clean. However, it lacks minerals found in drinking water. Drinking large amounts may not be harmful but it is not intended for drinking. It is designed for industrial and pharmaceutical use.

3. How often should I sanitize my PW generation system?

It depends on your system design and usage. Most pharmaceutical companies sanitize weekly or monthly. Hot water sanitization at 80–85°C for one hour is common. Always follow your validated procedure.

4. What is the typical lifespan of a PW generation system?

With proper maintenance, a PW generation system can last 10–15 years. RO membranes last 2–5 years depending on feed water quality. CEDI modules last 5–10 years. Regular replacement of filters and UV lamps is also needed.

5. Does SKE&EAGLE provide installation and training?

Yes. SKE&EAGLE provides full installation support, commissioning, and on-site training. We also provide operational manuals and qualification documents. Our service team is available for remote and on-site assistance.

6. What is the reject water rate of an RO system?

Standard RO systems reject 20–30% of feed water as concentrate. Newer high-efficiency systems can reduce this to 10–15%. Some systems recover reject water for non-critical uses like cooling or irrigation.
