Water is the most critical raw material in pharmaceutical manufacturing, serving as an excipient, solvent, cleaning agent, and process utility. The pharmaceutical water system is the backbone of ensuring product safety, efficacy, and regulatory compliance, as even trace impurities can compromise drug quality and patient health. Unlike conventional water systems, pharmaceutical-grade water requires rigorous purification to meet strict global standards set by authorities like the US Pharmacopeia (USP), European Pharmacopeia (EP), World Health Organization (WHO), and FDA.
SKE&EAGLE specializes in designing, manufacturing, and supplying high-performance systems tailored to the unique needs of the pharmaceutical industry. Our expertise spans the entire lifecycle of pharmaceutical water systems, from pre-treatment to purification, storage, and distribution. In this guide, we will demystify pharmaceutical water systems, explore modern water purification system technologies, highlight the role of the best water softener and purification systems, and discuss the value of the best portable water purification system for pharmaceutical applications.
Understanding Pharmaceutical Water System: Core Concepts and Regulatory Requirements
A pharmaceutical water system is a specialized setup designed to produce, store, and distribute water that meets pharmaceutical-grade specifications. Its primary goal is to remove contaminants—including suspended solids, dissolved ions, organic compounds, microorganisms, and endotoxins—that could affect drug stability, purity, or safety. The system must be designed to maintain consistent quality, comply with GMP (Good Manufacturing Practices), and support continuous production.
Regulatory bodies worldwide have established clear standards for pharmaceutical water, with different grades tailored to specific applications. The most common grades include Purified Water (PW), Water for Injection (WFI), Highly Purified Water (HPW), and Bulk Purified Water. Each grade has distinct chemical, physical, and microbiological requirements, which dictate the design and components of the pharmaceutical water system.
WFI is the highest-purity grade, required for parenteral drugs (injections) and sterile formulations, as it comes into direct contact with the human body. PW, on the other hand, is used for non-sterile products like oral tablets, syrups, and equipment cleaning. Compliance with these standards is non-negotiable, and pharmaceutical manufacturers must implement robust water systems to avoid regulatory penalties and ensure patient safety.
Modern Water Purification System: Technologies Driving Pharmaceutical Water Quality
The evolution of modern water purification system technologies has revolutionized pharmaceutical water production, making it more efficient, reliable, and cost-effective. Unlike traditional systems, modern solutions integrate advanced processes to remove even the smallest contaminants, while ensuring consistent performance and ease of maintenance. SKE&EAGLE leverages these cutting-edge technologies to deliver systems that meet or exceed global regulatory standards.
Key components of a modern water purification system for pharmaceutical use include pre-treatment, primary purification, polishing, and post-treatment. Pre-treatment removes large particles, chlorine, and hardness, protecting downstream equipment. Primary purification processes—such as reverse osmosis (RO), ultrafiltration (UF), and distillation—remove dissolved solids, organic compounds, and microorganisms. Polishing, often using electrodeionization (EDI), further purifies water to meet WFI or HPW standards. Post-treatment, including UV sterilization and sterile filtration, ensures microbial control.
One of the most significant advantages of modern water purification systems is their automation. SKE&EAGLE’s systems feature advanced monitoring and control systems that track key parameters (e.g., conductivity, TOC, microbial load) in real time, allowing for proactive adjustments and ensuring consistent water quality. Automation also reduces human error, simplifies compliance documentation, and lowers operational costs over time.
Best Water Softener and Purification Systems: Critical for Pharmaceutical Pre-Treatment
Water hardness—caused by dissolved calcium and magnesium ions—is a major challenge in pharmaceutical water production. Hard water can lead to scale formation on equipment, clog pipes, damage RO membranes, and reduce system efficiency. This is where the best water softener and purification systems play a critical role, serving as a vital pre-treatment step in the pharmaceutical water system.
The best water softener and purification systems for pharmaceutical applications use ion exchange technology to replace calcium and magnesium ions with sodium ions, eliminating hardness. SKE&EAGLE’s water softeners are designed to handle high flow rates, maintain consistent performance, and integrate seamlessly with other purification components. Our systems are available in single-bed, twin-bed, and mixed-bed configurations, tailored to the specific hardness levels of the raw water source.
Twin-bed softeners, in particular, are ideal for pharmaceutical facilities with 24/7 production needs, as they allow one bed to operate while the other regenerates, ensuring a continuous supply of soft water. Mixed-bed softeners, meanwhile, are used as polishing units to achieve ultra-high purity, making them suitable for WFI production. By investing in the best water softener and purification systems, pharmaceutical manufacturers can extend equipment lifespan, reduce maintenance costs, and ensure compliance with purity standards.
Best Portable Water Purification System: Flexibility for Pharmaceutical Applications
While permanent pharmaceutical water systems are standard for large-scale production, the best portable water purification system offers unmatched flexibility for remote facilities, laboratory testing, emergency situations, or temporary production sites. Portable systems are designed to be compact, lightweight, and easy to deploy, while still meeting pharmaceutical-grade standards.
SKE&EAGLE’s best portable water purification system integrates RO, UF, and UV sterilization technologies, delivering purified water on-demand. These systems are ideal for pharmaceutical companies with multiple facilities, field testing operations, or temporary manufacturing needs. They can treat various water sources—including tap water, groundwater, and surface water—removing contaminants and ensuring compliance with PW or HPW standards.
The best portable water purification system also features user-friendly controls, durable construction, and low maintenance requirements. Whether used for emergency backup, laboratory research, or remote production, these systems provide a reliable solution for maintaining pharmaceutical water quality without the need for permanent installation. This flexibility makes them a valuable addition to any pharmaceutical water management strategy.
Key Components of a Pharmaceutical Water System
A complete pharmaceutical water system consists of several interconnected components, each playing a critical role in ensuring water purity. SKE&EAGLE designs systems with high-quality components that are GMP-compliant, easy to maintain, and built to last. Below is a breakdown of the core components and their functions:
|
Component
|
Function
|
SKE&EAGLE Advantage
|
|---|---|---|
|
Pre-Treatment System (Filters, Softeners)
|
Removes suspended solids, chlorine, and hardness from raw water; protects downstream equipment.
|
Custom-designed based on raw water quality; includes high-efficiency softeners and activated carbon filters.
|
|

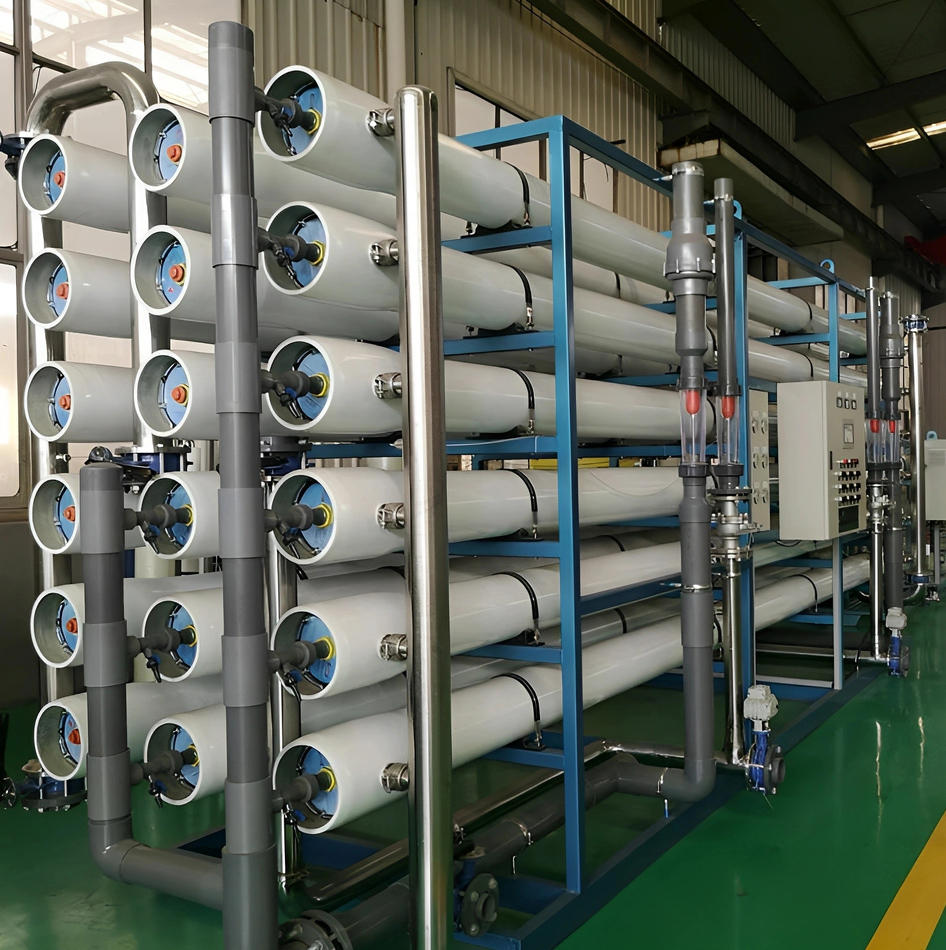

Reverse Osmosis (RO) System
|
Removes dissolved solids, organic compounds, and microorganisms through a semi-permeable membrane.
|
High-recovery RO membranes; automated cleaning (CIP) for extended lifespan; energy-efficient design.
|
|
Electrodeionization (EDI) Unit
|
Polishes water to ultra-high purity by removing residual ions; used for WFI and HPW production.
|
Continuous operation; no chemical regeneration; consistent purity levels.
|
|
UV Sterilizer
|
Kills microorganisms (bacteria, viruses) using ultraviolet light; prevents microbial contamination.
|
High-intensity UV lamps; real-time monitoring of lamp performance; easy replacement.
|
|

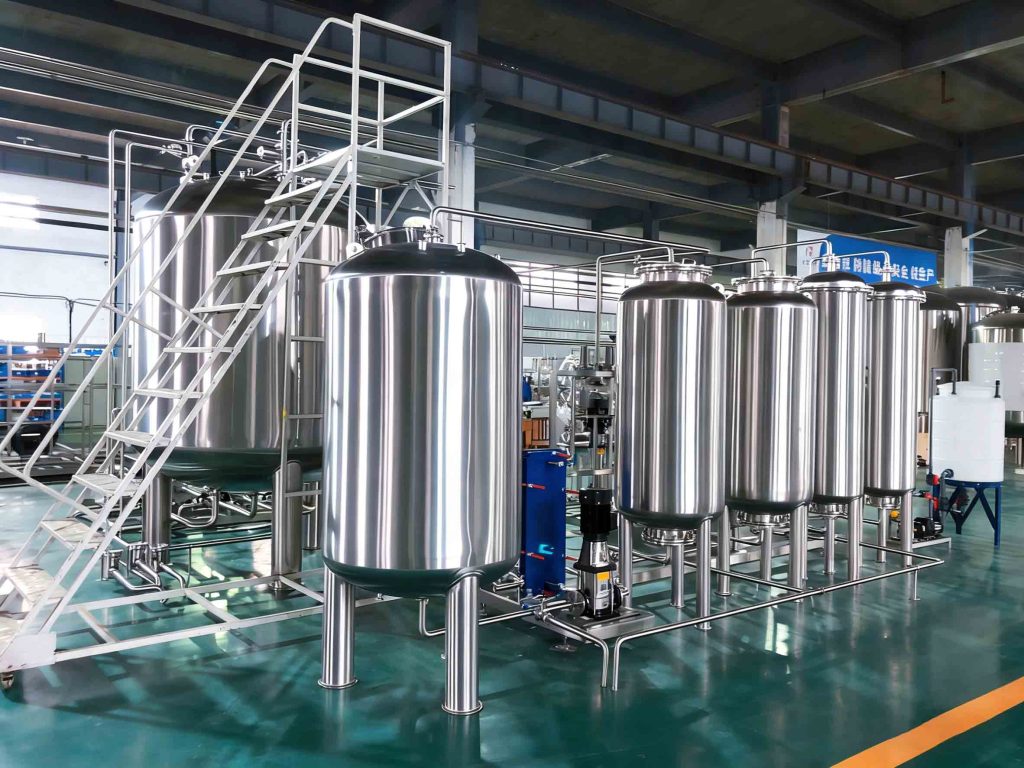

Storage and Distribution System
|
Stores purified water and distributes it to production areas; maintains water quality during storage.
|
Sanitary stainless steel tanks; recirculation loops to prevent stagnation; GMP-compliant design.
|
|
Monitoring and Control System
|
Tracks key parameters (conductivity, TOC, microbial load); ensures system compliance and performance.
|
Automated data logging; remote monitoring; alerts for abnormal conditions.
|
Pharmaceutical Water System Standards: Global Compliance
Compliance with global standards is the foundation of any pharmaceutical water system. Regulatory bodies like USP, EP, WHO, and FDA have established strict specifications for different grades of pharmaceutical water, covering chemical, physical, and microbiological parameters. SKE&EAGLE’s systems are designed to meet these standards, ensuring that our clients can pass audits and maintain product quality.
The table below summarizes the key specifications for the most common grades of pharmaceutical water, based on USP, EP, and WHO guidelines:
|
Water Grade
|
Conductivity (μS/cm @ 25°C)
|
Total Organic Carbon (TOC) (ppb)
|
Microbial Load (cfu/100ml)
|
Endotoxin (EU/ml)
|
Common Applications
|
|---|---|---|---|---|---|
|
Purified Water (PW)
|
≤1.3
|
≤500
|
≤10,000
|
N/A
|
Non-sterile drugs, equipment cleaning, laboratory use
|
|
Water for Injection (WFI)
|
≤1.3
|
≤500
|
≤10
|
≤0.25
|
Parenteral drugs, sterile formulations, biologics
|
|
Highly Purified Water (HPW)
|
≤0.1
|
≤100
|
≤10
|
≤0.25
|
Biopharmaceuticals, advanced therapies
|
It is important to note that microbial requirements for PW and WFI are not included in their monographs, as they vary based on the water’s intended use. Instead, manufacturers are required to establish in-house microbial alert and action levels, based on guidelines in USP Chapter <1231> Water for Pharmaceutical Purposes. These levels help trigger proactive microbial control measures, preventing objectionable microorganisms from contaminating the water supply.
SKE&EAGLE’s Pharmaceutical Water System Solutions
At SKE&EAGLE, we understand that every pharmaceutical facility has unique water quality needs. Our team of experts works closely with clients to assess their raw water quality, production requirements, and regulatory obligations, designing customized pharmaceutical water systems that deliver consistent, compliant results. We offer a full range of solutions, including:
- Custom Pre-Treatment Systems: Including the best water softener and purification systems, designed to address raw water hardness, chlorine, and suspended solids. Our softeners are available in various configurations to meet the specific needs of each facility.
- Modern Water Purification Systems: Integrating RO, EDI, UF, and distillation technologies to produce PW, WFI, and HPW. Our systems are automated, energy-efficient, and built for long-term reliability.
- Portable Water Purification Systems: The best portable water purification system for remote or temporary applications, delivering pharmaceutical-grade water on-demand. Our portable systems are compact, durable, and easy to deploy.
- Storage and Distribution Systems: Sanitary stainless steel tanks and recirculation loops to maintain water quality during storage and distribution. Our systems are designed to prevent stagnation and microbial growth.
- Monitoring and Compliance Support: Advanced monitoring systems that track key parameters and generate compliance reports, simplifying audit preparation. Our team also provides ongoing maintenance and technical support to ensure system performance.
FAQ: Common Questions About Pharmaceutical Water Systems
Below are answers to the most frequently asked questions about pharmaceutical water systems, modern water purification systems, the best water softener and purification systems, and the best portable water purification system. These questions are based on common inquiries from pharmaceutical manufacturers and regulatory compliance teams.
Q1: What is the difference between a pharmaceutical water system and a conventional water purification system?
A: A pharmaceutical water system is specifically designed to meet the strict purity and regulatory requirements of the pharmaceutical industry. Unlike conventional systems, which focus on removing basic contaminants for drinking water, pharmaceutical systems must remove trace impurities (e.g., endotoxins, organic compounds, microorganisms) to ensure drug safety. They also require GMP-compliant design, automation, and documentation to meet regulatory standards. SKE&EAGLE’s systems are engineered to address these unique requirements, delivering consistent, compliant water.
Q2: Why is water softening important in a pharmaceutical water system?
A: Water softening is a critical pre-treatment step because hard water (high in calcium and magnesium) can form scale on equipment, clog RO membranes, and reduce system efficiency. Scale deposits can also harbor microorganisms, increasing the risk of contamination. The best water softener and purification systems remove hardness ions, protecting downstream equipment and ensuring consistent purification performance. SKE&EAGLE’s softeners are designed to handle the high demands of pharmaceutical production, with configurations tailored to raw water hardness levels.
Q3: When should I use the best portable water purification system in pharmaceutical applications?
A: The best portable water purification system is ideal for scenarios where a permanent system is not feasible, including remote facilities, laboratory testing, emergency backup, or temporary production sites. It is also useful for pharmaceutical companies with multiple facilities, as it can be easily transported and deployed to meet short-term water needs. SKE&EAGLE’s portable systems deliver pharmaceutical-grade water, ensuring compliance even in non-permanent settings.
Q4: How do modern water purification systems improve pharmaceutical water quality?
A: Modern water purification systems integrate advanced technologies like RO, EDI, and UV sterilization to remove even the smallest contaminants. They also feature automation, which allows for real-time monitoring of key parameters (e.g., conductivity, TOC) and proactive adjustments to maintain water quality. Unlike traditional systems, modern solutions are energy-efficient, require less maintenance, and generate detailed compliance documentation. SKE&EAGLE’s modern systems are designed to meet the latest regulatory standards, ensuring consistent purity and reliability.
Q5: What regulatory standards must a pharmaceutical water system comply with?
A: Pharmaceutical water systems must comply with global standards set by USP, EP, WHO, and FDA. These standards define the purity requirements for different water grades (PW, WFI, HPW) and outline GMP requirements for system design, installation, operation, and maintenance. Compliance includes meeting chemical, physical, and microbiological specifications, as well as maintaining detailed documentation of system performance and maintenance. SKE&EAGLE’s systems are designed to meet these standards, helping clients pass audits and ensure product safety.
Conclusion: Investing in a High-Quality Pharmaceutical Water System
A pharmaceutical water system is a critical investment for any pharmaceutical manufacturer, as it directly impacts product safety, efficacy, and regulatory compliance. Modern water purification system technologies, combined with the best water softener and purification systems and the best portable water purification system, provide the flexibility, reliability, and purity required for today’s pharmaceutical production.
At SKE&EAGLE, we are committed to delivering high-performance pharmaceutical water systems that meet the strictest global standards. Our customized solutions, advanced technologies, and comprehensive support ensure that our clients can produce safe, compliant drugs while optimizing operational efficiency. Whether you need a permanent system for large-scale production or a portable solution for remote applications, SKE&EAGLE has the expertise and experience to meet your needs.
