A Deep Dive into Modern Water Purification Systems

Water plays a vital role in medicine production. However, tap water contains too many impurities. It has chemicals, bacteria, and small particles. Dirty water can harm patients. That is why every pharmaceutical factory needs a good water purification system.

A pharmaceutical water purification system removes nearly everything except water. The final water becomes very pure. We call this Purified Water (PW) or Water for Injection (WFI). Strict rules like USP and EP define these names.

This article explains how these systems work. We also discuss water treatment control systems, pure water water purification system design, and commercial water purification system price. We use simple English. Our goal is to help you understand the basics.

SKE&EAGLE builds these systems for pharmaceutical companies. We have many years of experience. Let us start with a basic question: why is pure water difficult to produce?

Why Tap Water Is Not Pure Enough

Many people believe tap water is clean. But for medicine, tap water is too dirty. Tap water contains calcium, magnesium, chlorine, bacteria, and sometimes small metal particles. These substances can change the way a medicine works.

For example, calcium in tap water can reduce a medicine’s effectiveness. Bacteria in the water can grow inside the medicine bottle. This creates a serious danger for patients.

A water purification system removes these problems. The system uses several steps. Each step removes one type of impurity. The final water has very low conductivity (usually below 1 µS/cm) and very low bacteria (below 10 CFU/100 ml).

Pharmaceutical companies cannot guess whether the water is clean. They must measure it. That is why they use water treatment control systems. These systems check the water every few seconds. If something goes wrong, the system stops and sends an alarm.

The Main Parts of a Water Purification System

A good water purification system includes several parts. Each part performs one job. The table below shows the main parts and their functions.

Part Name	What It Does	Why It Matters
Multimedia Filter	Removes sand, rust, and large particles	Protects the next parts from damage
Water Softener	Removes calcium and magnesium	Prevents white scale inside pipes
Activated Carbon Filter	Removes chlorine and bad smells	Chlorine can damage RO membranes
Reverse Osmosis (RO)	Removes 95-99% of all chemicals	Performs the most important cleaning step
Continuous Electrodeionization (CEDI)	Removes the last small ions	Produces very clean water (<0.1 µS/cm)
UV Lamp (185 nm)	Kills bacteria and lowers TOC	Stops bacteria from growing
Storage Tank (316L SS)	Stores clean water	Keeps water fresh and moving

The first three parts form the pretreatment stage. Pretreatment prepares the water for the main cleaning steps. Without good pretreatment, the RO membrane breaks quickly. Replacing an RO membrane costs a lot of money. Therefore, pretreatment matters a great deal.

After RO and CEDI, the water becomes very clean. But it must stay clean. The storage tank and pipes keep the water moving at all times. Stagnant water grows bacteria fast. Moving water remains safe.

How Water Treatment Control Systems Help

Imagine managing a large factory. You cannot check the water quality by hand every minute. That is impossible. You need an automatic system. We call this a water treatment control system.

A water treatment control system uses small computers and sensors. The sensors measure the following parameters:

Conductivity (how many salts remain in the water)
Temperature
Flow rate
Pressure
Total Organic Carbon (TOC)

The control system reads these numbers all day and night. If conductivity rises too high, the system sends an alarm to the operator. Sometimes the system fixes the problem by itself. For example, it can open a valve or start a cleaning cycle.

Another important job involves data recording. Pharmaceutical companies must prove to inspectors that their water remained clean every single day. The control system saves all the data. Later, the company can print the data for an audit.

SKE&EAGLE builds control systems that follow GMP rules. Operators find them easy to use. The system shows the whole process on one screen. Operators can also receive mobile alerts if something goes wrong.

Pure Water Water Purification System: What Does It Mean?

You may see the words pure water water purification system on the internet. This term appears frequently in searches. It simply means a system that produces high-purity water. No single definition of “pure water” exists. Different industries need different purity levels.

For a laboratory, pure water might have a resistance of 18.2 MΩ·cm. For a pharmaceutical factory, pure water must have very low bacteria and very low endotoxins. Endotoxins are small parts of dead bacteria. They can cause fever in patients.

A pharmaceutical pure water water purification system typically includes the following features:

316L stainless steel construction
Smooth inner surface (Ra < 0.6 µm)

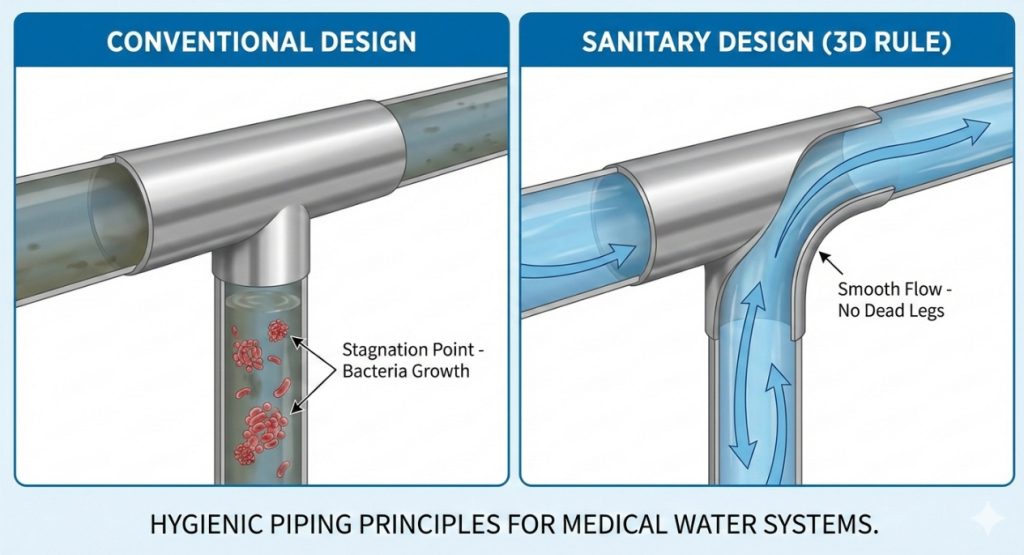

No dead legs (places where water stops moving)
Regular sanitization (hot water or ozone)

If a system lacks these features, it is not suitable for medicine production. It might work fine for washing cars or watering plants. But it is not safe for medicine. Therefore, you must choose the right system for your industry.

SKE&EAGLE designs systems for pharmaceutical and biotech companies. We understand the strict rules. We build every part to be safe and easy to clean.

Commercial Water Purification System Price: A Simple Guide

Price always raises important questions. When you search for commercial water purification system price, you will see many different numbers. Why does this happen? Because price depends on several factors.

The table below lists the main factors that affect the price.

Factor	Effect on Price
Flow rate (liters per hour)	Higher flow increases the price
Water quality needed (PW or WFI)	WFI costs more than PW
Material (plastic or stainless steel)	Stainless steel costs more than plastic
Automation level	Full automation increases the price
Validation documents	Documents add to the cost

A small system for a laboratory might cost $20, 000 t o$ 50,000. A medium system for a pharmaceutical factory might cost $100, 000 t o$ 300,000. A large system for a big factory can cost over $500,000.

However, you should not consider only the purchase price. You must also consider running costs. Membranes need replacement every 2-3 years. Electricity and water also cost money. A cheap system may use more electricity and break more often. In the long run, it becomes more expensive.

SKE&EAGLE helps customers calculate the total cost over 5 or 10 years. We call this Life Cycle Cost. We believe in honesty and transparency. We want you to make the best decision for your company.

FAQ: Frequently Asked Questions

Q1: How often should we sanitize our water purification system?
A: For most pharmaceutical systems, once per week works well. Some systems sanitize every day. Your validation documents will specify the right frequency. SKE&EAGLE systems offer automatic sanitization. You simply set the time.

Q2: Can we use a cheap system for non-critical applications?
A: Yes. If you are not making medicine, you may not need a pharmaceutical-grade system. But if you are making medicine, you must follow GMP rules. Using the wrong system can cause a product recall.

Q3: What is the difference between Purified Water (PW) and Water for Injection (WFI)?
A: WFI is cleaner than PW. WFI contains no endotoxins. PW may contain low levels of endotoxins. For injections that go into the blood, you must use WFI. For oral medicine, PW usually works well.

Q4: How long does it take to receive a system from SKE&EAGLE?
A: A standard system takes 12 to 14 weeks. This includes building, testing, and shipping. A custom system may take 20 to 24 weeks. We also offer faster delivery for urgent projects. Please contact us to discuss your timeline.

Q5: Does SKE&EAGLE provide operator training?
A: Yes. We provide on-site training and online training. We also give you a full manual with pictures and simple steps. Our goal is to make sure your team feels confident when using the system.

Conclusion: Choose SKE&EAGLE for Reliable Pure Water

Making medicine carries serious responsibility. Your water must remain perfect every day. That is why you need a reliable water purification system from an experienced company.

SKE&EAGLE has helped many pharmaceutical companies around the world. We design systems that are:

Easy to operate
Simple to maintain
Fully compliant with GMP rules
Backed by strong customer support

We also provide water treatment control systems that are smart and user-friendly. Our pure water water purification system solutions earn the trust of quality managers and engineers. And we always give honest information about commercial water purification system price with no hidden fees.
