Water purification is the backbone of modern industrial operations, pharmaceutical manufacturing, and scientific research. A commercial water purification machine is not merely a piece of equipment but a critical investment that ensures process integrity, product safety, and regulatory compliance. Unlike residential units, commercial systems are engineered for continuous, high-volume operation, delivering consistent water quality tailored to stringent industry standards. This article explores the core technologies, applications, and key distinctions between commercial water purification machines, pharmaceutical water purification systems, pharmaceutical water systems, and water purification systems for laboratory use, with insights from SKE&EAGLE, a leading manufacturer of specialized water treatment solutions.
What Is a Commercial Water Purification Machine?
A commercial water purification machine is a robust, scalable system designed to treat large volumes of water for non-residential applications. It addresses the limitations of household purifiers by offering higher flow rates, advanced filtration stages, and industrial-grade durability. These systems are the foundation of water treatment in sectors such as food and beverage, manufacturing, hospitality, healthcare, and pharmaceuticals.
At its core, a commercial water purification machine employs a multi-stage treatment process to remove a wide spectrum of contaminants, including sediments, chlorine, heavy metals, bacteria, viruses, and dissolved solids. The primary technology driving most commercial systems is Reverse Osmosis (RO), which uses a semi-permeable membrane with a pore size of 0.0001 microns to reject up to 99% of dissolved impurities. Complementary technologies like activated carbon filtration, ultraviolet (UV) disinfection, and electro-deionization (EDI) are often integrated to enhance purity and meet specific application requirements.
Key characteristics of commercial water purification machines include:
- High Flow Rates: Ranging from 100 liters per hour (L/H) to over 20 tons per hour (T/H) to support large-scale operations.
- Continuous Operation: Built for 24/7 use with redundant components and automated self-cleaning cycles.
- Customization: Modular designs allow adaptation to varying feed water quality and end-use specifications.
- Monitoring & Control: Equipped with PLC-based systems for real-time tracking of water quality parameters (e.g., TDS, conductivity) and automated alerts.
Core Technologies in Commercial Water Purification
Understanding the technologies behind a commercial water purification machine is essential for selecting the right system. The treatment process typically follows a standardized workflow, from raw water intake to final purified water distribution.
Pretreatment Stage
Pretreatment is critical to protect downstream components from fouling and damage. It removes large particles and chemical impurities that could compromise the RO membrane.
- Multimedia Filtration: Uses layers of quartz sand, anthracite, and garnet to filter out sediments, rust, and suspended solids larger than 10 microns.
- Activated Carbon Filtration: Adsorbs chlorine, chloramines, organic compounds, and unpleasant odors, which are harmful to RO membranes and affect water taste.
- Water Softening: Exchanges calcium and magnesium ions with sodium ions to prevent scale formation in pipes and membranes, especially in hard water areas.
- Precision Filtration: A final 5-micron filter ensures no residual particles enter the RO system, extending membrane life.
Reverse Osmosis (RO) – The Heart of Purification
RO is the most widely used technology in commercial water purification machines. Under high pressure (typically 8–15 bar), raw water is forced through a thin-film composite RO membrane. Water molecules pass through the membrane, while dissolved salts, bacteria, viruses, and organic molecules are rejected and flushed away as concentrate (wastewater).
The efficiency of RO is measured by its salt rejection rate, which for commercial systems is typically ≥97–99%. This stage produces purified water with low total dissolved solids (TDS), making it suitable for most general industrial and commercial applications.
Post-Treatment Stage
Post-treatment polishes the RO permeate to meet higher purity standards and ensures water safety during storage and distribution.
- Electro-Deionization (EDI): A continuous, chemical-free process that uses ion-exchange resins and an electric current to remove remaining ions, producing ultra-pure water with resistivity up to 18.2 MΩ·cm.
- Ultraviolet (UV) Disinfection: Exposes water to UV-C light (254 nm) to destroy the DNA of bacteria, viruses, and other microorganisms, ensuring microbiological safety.
- Ozonation: Adds ozone to water for powerful oxidation of organic contaminants and disinfection, often used in bottling and food processing.
- Microfiltration/Ultrafiltration: Removes residual particles, bacteria, and endotoxins, critical for pharmaceutical and laboratory applications.
Pharmaceutical Water Purification System: The Gold Standard for Purity
A pharmaceutical water purification system is a specialized subset of commercial water treatment, designed to meet the most rigorous regulatory standards in the world. Water is a primary raw material in pharmaceuticals, used for drug formulation, equipment cleaning, and parenteral preparations. Even trace contaminants can compromise drug safety and efficacy, making these systems non-negotiable for compliance with GMP (Good Manufacturing Practices), USP (United States Pharmacopeia), EP (European Pharmacopoeia), and ChP (Chinese Pharmacopeia).
Key Water Grades in Pharmaceutical Manufacturing
Pharmaceutical water systems produce two primary grades of water, each with strict specifications:
- Purified Water (PW): Used for non-sterile drug manufacturing, equipment cleaning, and as feed water for WFI. Key standards include conductivity ≤1.3 μS/cm (25°C), TOC ≤500 ppb, and microbial count ≤10 CFU/100 mL.
- Water for Injection (WFI): The highest purity grade, intended for sterile injectable drugs, biologics, and intravenous solutions. It must meet PW standards plus an endotoxin limit ≤0.25 EU/mL and be sterile.
Design & Compliance Features of Pharmaceutical Water Systems
SKE&EAGLE’s pharmaceutical water purification systems are engineered to exceed regulatory requirements with the following features:
- Hygienic Design: All wetted parts are constructed from 316L stainless steel with electro-polished surfaces (Ra ≤0.6 μm) to prevent biofilm formation and ensure easy cleaning.
- Sanitary Circulation: Water is continuously circulated at temperatures >70°C or <10°C to inhibit microbial growth.
- CIP/SIP Capability: Fully automated Clean-in-Place (CIP) and Steam-in-Place (SIP) cycles for validated sanitization without disassembly.
- Full Validation: Systems undergo complete validation from Design Qualification (DQ) to Performance Qualification (PQ), with comprehensive documentation for regulatory audits.
- Real-Time Monitoring: Continuous online measurement of conductivity, TOC, temperature, and microbial indicators, with data logging for at least one year.
Pharmaceutical Water System vs. General Commercial Water Purifier
The table below highlights the critical differences between a standard commercial water purification machine and a pharmaceutical water purification system:
| Parameter | General Commercial Water Purifier | Pharmaceutical Water Purification System |
|---|---|---|
| Primary Goal | Remove contaminants for safe, usable water | Meet strict pharmacopeial standards for drug safety |
| Key Standards | Local drinking water or industrial guidelines | USP, EP, ChP, GMP |
| Water Purity | TDS reduction, basic microbiological control | Ultra-low TOC, conductivity, and endotoxin levels |
| Materials | Stainless steel, plastic, or mixed materials | 316L electro-polished stainless steel only |
| Microbiological Control | UV or ozone disinfection | Continuous circulation, SIP, and biofilm prevention |
| Validation | Optional | Mandatory full lifecycle validation |
| Documentation | Basic operation manuals | Comprehensive validation reports and audit trails |
| Typical Applications | Food & beverage, hospitality, manufacturing | Drug formulation, WFI production, sterile equipment cleaning |

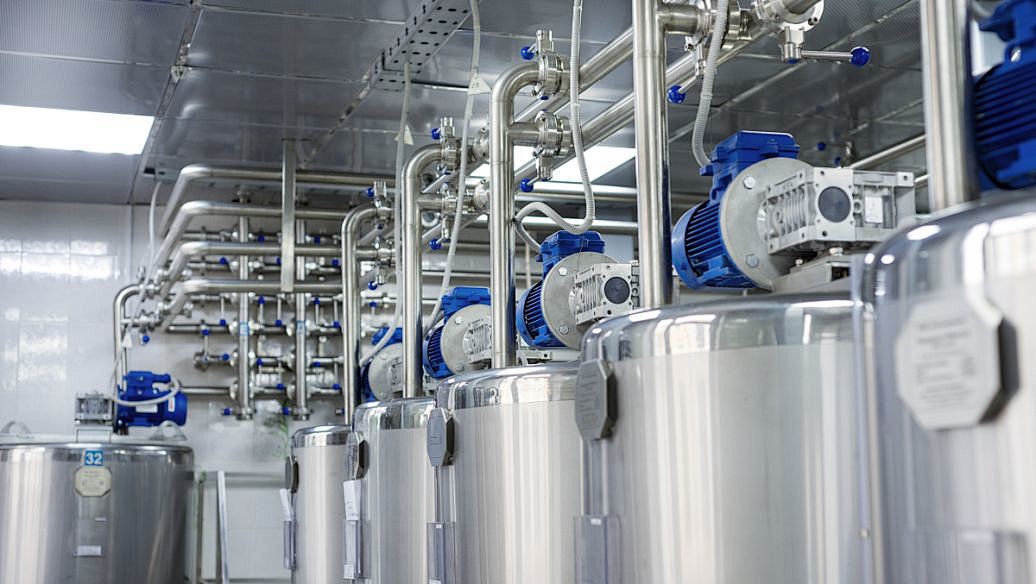

Pharmaceutical Water System: Integrated Solutions for the Entire Water Loop
While a pharmaceutical water purification system focuses on water treatment, a pharmaceutical water system encompasses the entire water lifecycle—from purification to storage, distribution, and point-of-use delivery. It is a fully integrated, closed-loop system designed to maintain water purity from production to application.
Components of a Complete Pharmaceutical Water System
A SKE&EAGLE pharmaceutical water system integrates the following core components:
- Purification Skid: The RO-EDI or multi-effect distillation (MED) unit for producing PW and WFI.
- Storage Tanks: Hygienic, jacketed tanks with vent filters and level sensors to store purified water under controlled conditions.
- Distribution Loop: A closed, pressurized pipeline network with sanitary pumps, ensuring turbulent flow (flow velocity ≥1.5 m/s) to prevent stagnation and biofilm.
- Point-of-Use (POU) Modules: Sanitary valves and filters at each use point to maintain water quality during dispensing.
- Control System: A centralized PLC with HMI (Human-Machine Interface) for monitoring, controlling, and recording all system parameters.
Operational Excellence in Pharmaceutical Water Systems
The success of a pharmaceutical water system lies in its operational reliability and consistency. SKE&EAGLE’s systems feature:
- Redundancy: Dual pumps, membranes, and sensors to ensure uninterrupted water supply, critical for 24/7 pharmaceutical manufacturing.
- Energy Efficiency: Optimized RO recovery rates (65–70%) and heat recovery in distillation systems to reduce operational costs.
- Remote Monitoring: IoT-enabled systems allow real-time access to performance data and predictive maintenance alerts from anywhere in the world.
- Compliance Assurance: Built-in compliance with global regulatory requirements, reducing the risk of audit findings.
Water Purification System for Laboratory Use: Precision for Scientific Research
A water purification system for laboratory use is another specialized commercial solution, tailored to the unique demands of scientific research and analytical testing. Laboratories require water of exceptional purity, as even minute contaminants can skew experimental results, damage sensitive instruments, or compromise cell cultures. These systems are classified by water purity grades as defined by ASTM D1193 and CLSI standards.
Laboratory Water Purity Grades
Laboratory water systems produce three primary grades, each suited to specific applications:
- Type III (RO Water): The most basic grade, produced via RO. Resistivity >4 MΩ·cm, used for glassware rinsing, autoclave feed, and general lab utilities.
- Type II (Pure Water): RO water polished with ion exchange or EDI. Resistivity 10–15 MΩ·cm, low TOC, suitable for buffer preparation, microbiology media, and general analytical work.
- Type I (Ultrapure Water): The highest purity grade, with resistivity 18.2 MΩ·cm, near-zero TOC, and no bacteria or endotoxins. Used for HPLC, mass spectrometry, cell culture, and molecular biology.
Key Features of Laboratory Water Purification Systems
SKE&EAGLE’s water purification systems for laboratory use are designed for precision and flexibility:
- Modular Configurations: Benchtop, floor-standing, and centralized systems to fit lab space constraints and volume requirements (1–20 L/min).
- Multi-Stage Purification: Combines RO, EDI, UV photo-oxidation, and ultrafiltration to achieve Type I ultrapure water on demand.
- Low Contamination Design: Wetted parts made of PTFE, polypropylene, or 316L stainless steel to prevent leaching of impurities.
- Instant Purity: On-demand production eliminates the need for large storage tanks, reducing the risk of microbial contamination.
- User-Friendly Interface: Intuitive controls with real-time display of resistivity, TOC, and temperature, plus automated maintenance reminders.
Laboratory vs. Pharmaceutical Water Systems: Key Differences
While both require high purity, water purification systems for laboratory use and pharmaceutical water systems differ significantly in design and application:
| Aspect | Water Purification System for Laboratory Use | Pharmaceutical Water System |
|---|---|---|
| Primary Objective | Deliver ultra-pure water for analytical accuracy | Produce water compliant with pharmacopeial standards |
| Volume Requirement | Low to medium (1–100 L/H) | High (100 L/H to 10 T/H) |
| Regulatory Focus | ASTM/CLSI standards, no GMP mandate | Strict GMP, USP, EP compliance |
| System Design | Compact, point-of-use, minimal storage | Large-scale, closed-loop distribution, extensive storage |
| Microbiological Control | UV/filtration, no SIP required | Continuous circulation, SIP, and biofilm management |
| Typical Use | Research, testing, instrument feed | Drug manufacturing, sterile processing |
SKE&EAGLE: Your Partner in Advanced Water Purification Solutions
With decades of expertise, SKE&EAGLE is a trusted manufacturer of commercial water purification machines, pharmaceutical water purification systems, pharmaceutical water systems, and water purification systems for laboratory use. We combine cutting-edge technology with deep industry knowledge to deliver solutions that set the standard for purity, reliability, and compliance.
Our commitment to excellence is reflected in every system we design:
- Custom Engineering: We tailor each solution to your specific application, feed water, and regulatory needs.
- Quality Manufacturing: All systems are built in our ISO 9001-certified facility using premium components from global leaders.
- End-to-End Support: From initial consultation and design to installation, validation, and ongoing service, our team of experts is with you every step of the way.
- Innovation Leadership: We continuously invest in R&D to integrate the latest advancements in water treatment technology, ensuring our clients stay ahead of regulatory and operational challenges.
Frequently Asked Questions (FAQ)
Q1: What is the difference between a commercial water purification machine and a residential one?
A: Commercial systems are designed for high-volume, continuous operation (24/7) with larger flow rates and more robust filtration stages. They offer advanced monitoring, customization, and durability, whereas residential units are for low-volume, intermittent use with basic filtration.
Q2: How often do I need to replace filters and membranes in a commercial water purification machine?
A: Replacement frequency depends on feed water quality and usage. Pretreatment filters (sediment, carbon) typically last 3–6 months, while RO membranes can last 3–5 years with proper maintenance. SKE&EAGLE systems include automated alerts for timely replacements.
Q3: Can a pharmaceutical water purification system also be used for laboratory applications?
A: Yes, but it may be overqualified and more costly. Pharmaceutical systems produce PW/WFI, which meets or exceeds lab water standards, but lab systems are more compact and cost-effective for research-specific needs.
Q4: What is the typical recovery rate of a commercial RO system?
A: Standard commercial RO systems have a recovery rate of 50–70%. SKE&EAGLE’s advanced systems optimize recovery up to 75–80% through energy recovery and concentrate recycling, reducing water waste.
Q5: Can laboratory water purification systems produce sterile water?
A: Standard lab systems produce ultrapure water but not sterile water. For sterile applications, additional sterilization methods (e.g., autoclaving) or a dedicated pharmaceutical-grade system is required.
Conclusion
A commercial water purification machine is an indispensable asset for any industry relying on high-quality water. From general commercial applications to the stringent demands of pharmaceutical manufacturing and scientific research, specialized systems like pharmaceutical water purification systems, pharmaceutical water systems, and water purification systems for laboratory use are essential for ensuring safety, compliance, and operational success.
