Pharmaceutical manufacturing runs on water more than any other raw material. It fills the mixing tanks, rinses the equipment between batches, and becomes part of the finished product itself. The catch is that ordinary tap water, even filtered municipal water, falls far short of what a drug product requires. A handful of dissolved ions or a small population of bacteria that would be irrelevant in a beverage can be enough to fail a batch, trigger an FDA 483 observation, or put a patient at risk.
SKE&EAGLE designs and builds pharmaceutical water systems for manufacturers ranging from contract labs to large-scale injectable production. This guide walks through how these systems are built, what separates a system that passes validation from one that does not, and the design decisions that matter most once water leaves the generation skid and travels through storage and distribution to the point of use.
What Counts as Pharmaceutical Water
Pharmaceutical water is defined by pharmacopeial standards, not by taste or clarity. The United States Pharmacopeia (USP), European Pharmacopoeia (EP), and Japanese Pharmacopoeia (JP) each specify two grades that cover most manufacturing needs.
Purified Water (PW) is used in non-sterile manufacturing and as an excipient in non-sterile products. Water for Injection (WFI) is the higher grade, required for parenteral products and other sterile applications. WFI carries tighter limits on endotoxins and bioburden, reflecting the fact that it may end up directly in a patient’s bloodstream.
Regulators test both grades against a short list of hard numbers: conductivity, total organic carbon (TOC), microbial count, and endotoxin level. Exceeding any one of these limits during routine monitoring is grounds for batch rejection, and a pattern of excursions is one of the more common findings in FDA warning letters to drug manufacturers. That regulatory exposure is why the water system is rarely treated as a commodity purchase — it is validated, monitored, and audited like any other piece of critical manufacturing equipment.
How a Pharmaceutical Water System Is Built
No single technology removes every category of contaminant. A compliant system stacks several treatment stages, each targeting a different class of impurity.
Pretreatment
Incoming water is conditioned before it reaches the high-purity stages. Media filtration removes suspended solids and sediment. Softening reduces calcium and magnesium hardness that would otherwise foul downstream membranes. Activated carbon filtration removes chlorine and residual organics. Skipping or undersizing pretreatment is one of the most common causes of premature membrane fouling in the field.
Reverse Osmosis (RO)

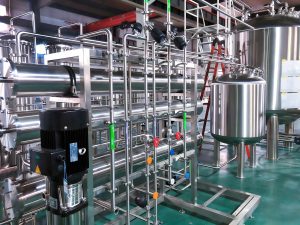

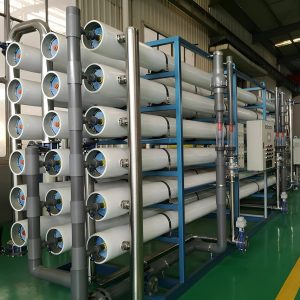

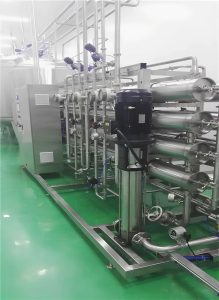

Reverse osmosis is the workhorse of the system. High-pressure pumps force water through a semi-permeable membrane that passes water molecules while rejecting dissolved salts, bacteria, and most organic compounds. A well-maintained single-pass RO system typically rejects the large majority of dissolved solids; many pharmaceutical systems run two RO passes in series, or pair RO with EDI, to reach the conductivity targets required for PW and WFI.
Electrodeionization (EDI)
Water leaving the RO stage is clean but still carries trace ionic content. EDI applies an electrical field across ion-exchange resin to pull out the remaining ions continuously, without the acid and caustic regeneration chemicals that older ion-exchange systems required. That makes EDI easier to operate and removes a waste-disposal step that used to be part of routine maintenance.
Ultraviolet (UV) Treatment
UV serves two separate functions in the system. At germicidal wavelengths it disinfects by damaging microbial DNA. At a different wavelength (185 nm), UV also breaks down trace organic compounds, which helps keep TOC within limits — a parameter that matters most for WFI production.
Storage and Distribution: Where Purity Is Won or Lost
A system can generate water that meets specification at the outlet of the last treatment stage and still fail an audit, because purity has to be maintained through storage and distribution, not just achieved once. This is where a lot of otherwise well-designed systems run into trouble.

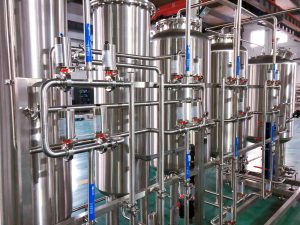

Storage Tank Design
The storage tank sits between generation and use, and its design determines whether water stays pure or slowly degrades. Vent filters (typically 0.2-micron hydrophobic) keep airborne contaminants out while allowing the tank to breathe as level changes. Spray-ball devices distribute cleaning and sanitizing fluid across the entire interior surface, including the headspace above the water line, where biofilm most often starts. A tank with poor spray coverage can look clean on inspection and still harbor contamination in the areas the spray pattern misses.

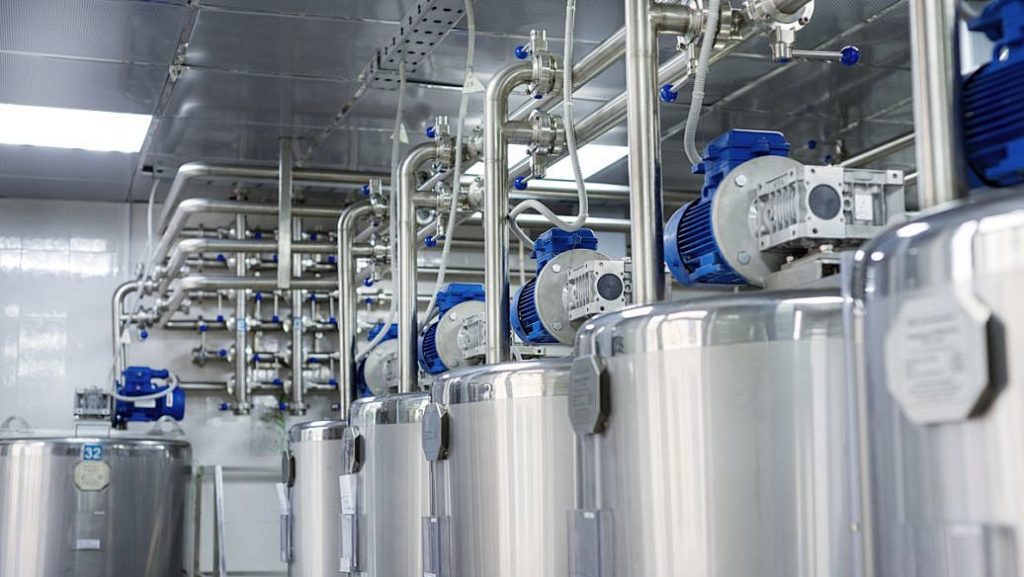

Distribution Loop Design
Water for Injection and high-grade Purified Water are almost always distributed in a continuously circulating loop rather than a dead-end pipe run. Continuous velocity (commonly specified at a minimum of 1 m/s, though the exact figure depends on pipe diameter and system design) prevents stagnation. Dead legs — any branch or fitting where flow is not continuously turbulent — are minimized by design rules that limit the ratio of branch length to pipe diameter, because a dead leg is exactly the kind of stagnant pocket where biofilm establishes itself.
Sanitization: Thermal vs. Chemical
Loops are sanitized on a schedule, using one of two general approaches. Thermal sanitization circulates hot water or clean steam through the loop, holding a target temperature for a defined period; it avoids chemical residues but requires the system to be designed for repeated thermal cycling. Chemical sanitization (commonly ozone or peracetic acid) works at ambient temperature but requires a validated rinse step to confirm no residual sanitant remains before the system returns to production use. The choice between the two is usually driven by the water grade, the materials of construction, and the facility’s existing utilities rather than by cost alone.
Materials: 304 vs. 316L Stainless Steel
The wrong material choice shows up as corrosion, and corrosion in a water system means particulate contamination and, eventually, pinhole leaks. SKE&EAGLE specifies material by zone rather than defaulting to one grade throughout the system.
| Material | Corrosion Resistance | Typical Use | Notes |
|---|---|---|---|
| 304 Stainless Steel | Good | Pretreatment piping, structural supports, non-product-contact areas | Lower cost; adequate before water reaches high-purity stages |
| 316L Stainless Steel | Excellent | Post-RO piping, storage tanks, distribution loops, WFI systems | Molybdenum content resists chloride pitting; lower carbon content improves weld integrity |
Industry practice treats 316L as the default for any surface that contacts water after the RO stage. It costs more up front, but the weld quality and corrosion resistance reduce the maintenance burden over the system’s service life — and a corroded weld in a WFI loop is a validation problem, not just a repair job.
Validation: DQ, IQ, OQ, PQ
A pharmaceutical water system is not considered fit for use until it has been formally validated, and the validation package follows a standard four-stage framework:
- Design Qualification (DQ) confirms the system design meets the user requirements before construction begins.
- Installation Qualification (IQ) verifies the system is installed as designed — correct components, correct documentation, correct as-built drawings.
- Operational Qualification (OQ) tests that each piece of equipment operates within its specified ranges under controlled conditions.
- Performance Qualification (PQ) demonstrates the system consistently produces water meeting specification under normal production conditions, typically over an extended monitoring period.
SKE&EAGLE provides IQ/OQ/PQ documentation packages in English and Chinese as part of system delivery, which shortens the internal review cycle for manufacturers running inspections across multiple regulatory jurisdictions.
Sizing and Customizing a System
There is no standard system size that fits every facility. Sizing starts with production volume and grows more specific from there.
| Application | Typical Capacity Range | Common Configuration | Automation Level |
|---|---|---|---|
| Laboratory / R&D | 100–500 L/h | Single RO + EDI | Basic controls |
| Pilot Plant | 500–2,000 L/h | Double RO + EDI + UV | Mid-level with data logging |
| Large-Scale Production | 2,000+ L/h | Double RO + EDI + validated sanitization loop | Full automation with 21 CFR Part 11 electronic records |
Beyond raw capacity, the design has to account for the target water grade (PW vs. WFI), regulatory jurisdiction, redundancy requirements, and whether the facility needs the system to support future capacity growth without a full rebuild. Skid-mounted, modular construction is common precisely because it lets a facility add capacity in a later phase without re-validating the entire system from scratch.
Frequently Asked Questions
What is the practical difference between Purified Water and Water for Injection?
Purified Water is used in non-sterile manufacturing and as a non-sterile excipient. Water for Injection meets a stricter endotoxin and bioburden specification and is required for parenteral and other sterile applications.
Is 304 stainless steel ever acceptable in a pharmaceutical water system?
Yes, in pretreatment piping and structural areas that precede the RO stage. Anything downstream of RO — storage tanks, distribution loops, WFI piping — should be 316L.
How often does a distribution loop need to be sanitized?
Sanitization frequency is set during validation based on the water grade, the sanitization method, and ongoing monitoring data, rather than a single fixed interval that applies to every system.
What documentation should I expect from a system supplier?
A complete package includes DQ, IQ, OQ, and PQ documentation, material certifications, and as-built drawings. Ask for this documentation to be scoped and quoted before the project starts, not after installation.
Can an existing system be upgraded instead of replaced?
Often yes, particularly when the pretreatment and RO stages are sound but storage, distribution, or automation are outdated. A site assessment is the first step to determine what can be retained.
Conclusion
A pharmaceutical water system is judged on more than the water quality at the point of generation. Storage tank design, distribution loop velocity, sanitization strategy, and material selection all determine whether that quality is maintained through to the point of use — and whether the system will hold up under a regulatory audit years after installation.
SKE&EAGLE designs pharmaceutical water systems around the customer’s actual process and validation requirements, from laboratory-scale RO/EDI skids to fully automated, validated distribution loops for large-scale production. Contact us to review your feedwater quality, production volume, and target water grade, and we will prepare a system proposal built around your site.
