In pharmaceutical manufacturing, water is not merely an ingredient. It is a critical raw material. The quality of water directly impacts product safety, efficacy, and regulatory compliance. Ordinary potable water contains dissolved solids, organic compounds, microorganisms, and endotoxins that can ruin an entire batch of injectable drugs or biologics.
This is where advanced pure water solutions become indispensable. They go beyond standard filtration to achieve conductivity, total organic carbon (TOC), and microbial limits that meet strict pharmacopeias like USP, EP, and JP. Without such systems, no pharmaceutical facility can obtain Good Manufacturing Practice (GMP) certification.
For over two decades, SKE&EAGLE has engineered precisely these solutions. Our approach integrates pretreatment, reverse osmosis, electrodeionization, and storage distribution into validated skids. This article explains why commercial reverse osmosis water treatment systems form the backbone of modern pharma water plants—and how to select the right configuration for your production needs.
Why Standard Water Purification Fails Pharmaceutical Standards
Municipal tap water or well water contains a complex matrix of contaminants. Calcium and magnesium cause scaling. Chlorine damages thin-film composite membranes. Bacteria and endotoxins threaten sterility assurance levels. Standard water softeners or single-stage filters cannot remove ions in the sub-micron range or pyrogens.
Pharmaceutical water for injections (WFI) requires conductivity below 1.3 µS/cm at 25°C and TOC below 0.5 mg/L. Purified water (PW) demands similarly tight specifications. Achieving these numbers means deploying a multi-barrier approach. The first and most critical barrier is the reverse osmosis membrane.
Commercial reverse osmosis water treatment systems designed for pharma use low-pressure or high-pressure RO membranes with rejection rates exceeding 99.5% for monovalent ions. When properly configured, RO removes 99% of bacteria, 95% of organic carbon, and nearly all particulates larger than 0.1 nanometers. However, one RO pass often is insufficient for WFI, which leads to double-pass or RO-EDI hybrids.
The Core Technology: Commercial RO Water Purification Systems Explained
A commercial RO water purification system operates on a simple but powerful principle: applied pressure overcomes osmotic pressure, forcing water through a semipermeable membrane while rejecting dissolved solutes. In pharmaceutical applications, the system includes several engineered stages.
First, pretreatment guards the RO membranes. Multimedia filters remove suspended solids down to 10 microns. Activated carbon filters eliminate chlorine and chloramines, which would otherwise oxidize the polyamide membrane layer. A water softener exchanges calcium and magnesium for sodium to prevent scale formation on the membrane surface. Some advanced pure water solutions also include a cartridge prefilter of 5 microns or less.

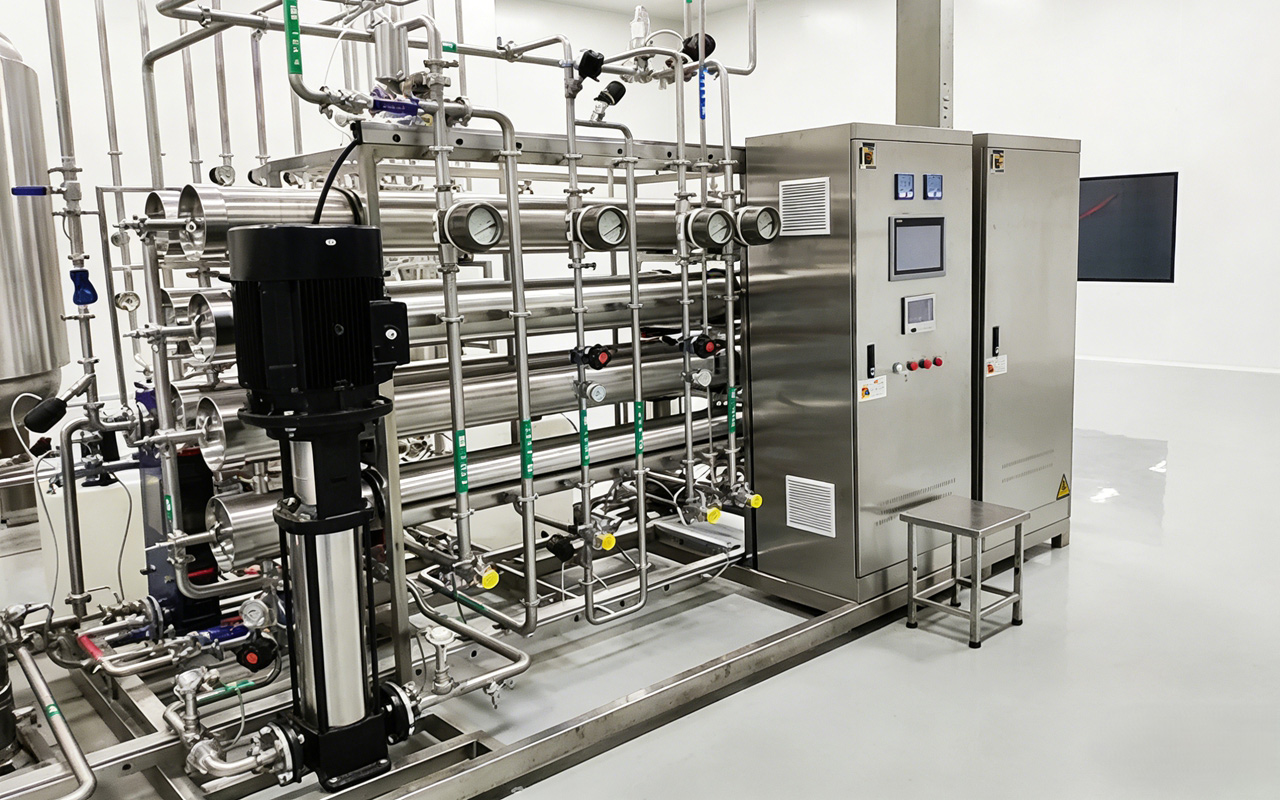

Second, the RO skid itself houses high-pressure pumps, membrane vessels, and instrumentation. Each membrane module contains thousands of square feet of membrane area. Feed water is pressurized to 150–300 psi, depending on temperature and salinity. Permeate (purified water) flows to a storage tank or downstream polishing. Concentrate (reject water) carries away the removed contaminants.
Third, post-treatment may include continuous electrodeionization (CEDI), ultraviolet (UV) disinfection at 254 nm for bacteria and 185 nm for TOC reduction, and ultrafiltration for endotoxin removal. For WFI systems, a hot water sanitizable storage loop with turbulent flow maintains microbial control.
Double-Pass RO vs. Single-Pass with EDI: A Technical Comparison
Not all commercial reverse osmosis water treatment systems are equal. The choice between single-pass RO, double-pass RO, and RO-EDI hybrid configurations depends on your final water quality target and operational budget.
Single-pass RO systems pass feed water through one array of membranes. They typically produce permeate with conductivity of 5–20 µS/cm, which meets purified water standards but not WFI. Double-pass RO systems route the permeate from the first bank through a second bank of membranes. The second pass further reduces ionic content to 0.5–2 µS/cm, approaching WFI quality. Between the two passes, operators often inject sodium hydroxide to convert carbon dioxide to bicarbonate, enhancing rejection.
RO-EDI hybrids represent the state of art in advanced pure water solutions. After the first RO pass, water enters an electrodeionization module. DC voltage drives ions across ion-exchange membranes and into a concentrate stream. EDI produces consistently ultrapure water with resistivity of 18 MΩ·cm (0.055 µS/cm) without chemical regeneration. This is ideal for high-pressure boilers, injectable products, and sensitive analytical work.
| Configuration | Output Conductivity | TOC Reduction | Microbial Control | Best For |
|---|---|---|---|---|
| Single-Pass RO | 5–20 µS/cm | Good | Moderate | Lab PW, rinsing |
| Double-Pass RO | 0.5–2 µS/cm | Very Good | High | Non-injectable drugs |
| RO + EDI | 0.055–0.1 µS/cm | Excellent | Very High | WFI, sterile products |
| RO + EDI + UF | <0.055 µS/cm | Superior | Superior (endotoxin-free) | Parenterals, biologics |
Key Design Parameters for Pharmaceutical RO Systems
Designing commercial reverse osmosis water treatment systems for pharma requires careful attention to several parameters. Overlooking any one can lead to frequent membrane cleaning, product water failures, or regulatory citations.
Recovery rate is the percentage of feed water converted to permeate. Typical pharma RO systems run at 50–75% recovery. Higher recovery conserves water but increases scaling risk and requires more aggressive antiscalant dosing. SKE&EAGLE uses reverse osmosis system modeling software to predict solubility indices for calcium carbonate, calcium sulfate, and silica.
Flux rate (gallons per square foot per day) determines membrane lifespan. Low flux extends membrane life but requires more membrane area. High flux reduces capital cost but accelerates fouling. For pharmaceutical feed waters with low fouling potential, we design for 12–15 GFD. For challenging surface water sources, we lower to 8–10 GFD and add antiscalant injection.
Crossflow velocity keeps particulates suspended so they exit through the concentrate stream. Inadequate flow causes boundary layer polarization, where rejected ions accumulate at the membrane surface, promoting scale. Our skids include recycle loops and variable frequency drive pumps to maintain optimal crossflow even during low production hours.
Materials of construction matter immensely. Wetted parts must resist corrosion and avoid leaching contaminants. SKE&EAGLE uses 316L stainless steel for high-pressure piping, EPDM or PTFE for seals, and FDA-compliant polypropylene for low-pressure plumbing. All surfaces meet sanitary standards for crevice-free design and drainability.
Pretreatment: The Silent Guardian of RO Membranes

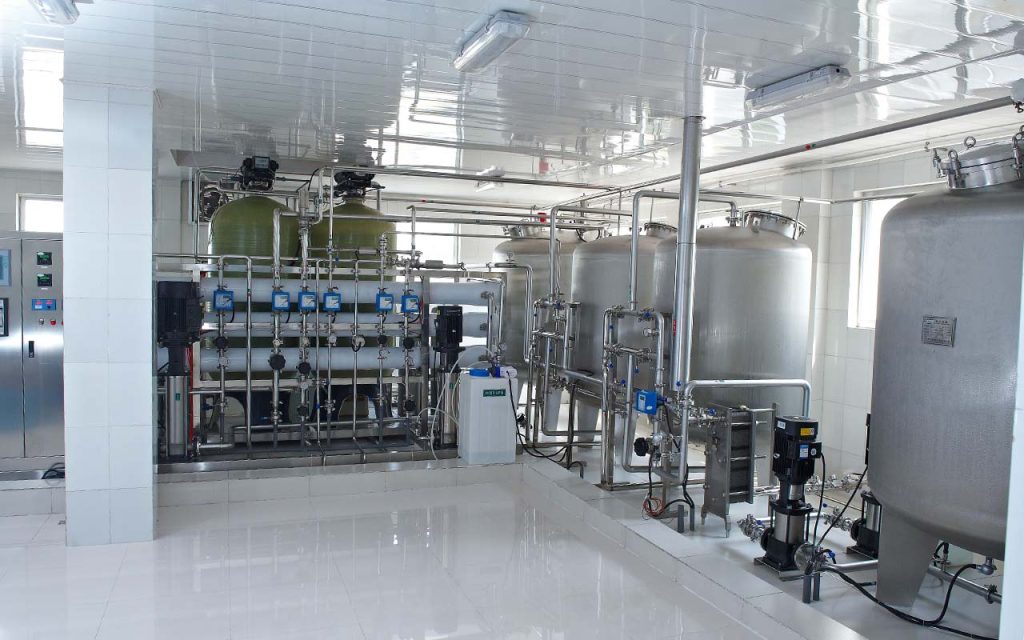

No commercial RO water purification system can perform reliably without proper pretreatment. Many pharma manufacturers learn this the hard way, suffering frequent membrane replacements and unplanned downtime. SKE&EAGLE designs pretreatment trains that match your specific feed water profile.
Multimedia filtration removes particles larger than 10 microns. These filters contain graded layers of anthracite, sand, and garnet. Backwash cycles automatically reverse flow to flush captured solids. For turbid surface water, we add an automatic backwashable screen filter upstream.
Activated carbon filtration is non-negotiable when chlorine is present. Municipal water contains 0.5–2.0 ppm free chlorine, which destroys thin-film composite membranes within hours. Carbon beds catalyze the reduction of chlorine to chloride. We size carbon vessels for an empty bed contact time of 5–10 minutes at peak flow. Steam sterilizable carbon filters are available for biotech applications.
Water softening uses cation exchange resin loaded with sodium ions. As hard water passes through, calcium and magnesium displace sodium from the resin. Periodic brine regeneration restores capacity. SKE&EAGLE offers both timer-based and demand-initiated regeneration. For large systems, we integrate duplex softeners that alternate service and regeneration.
Sodium bisulfite injection acts as a chemical backup for chlorine removal. A metering pump adds 1–3 ppm of bisulfite before the RO. An online ORP (oxidation-reduction potential) sensor triggers an alarm if bisulfite dosing fails. This multi-barrier approach ensures membrane safety even during carbon bed breakthrough.
Monitoring and Control: Industrial PLC and SCADA Integration
Modern advanced pure water solutions rely on real-time monitoring to maintain quality and predict maintenance needs. SKE&EAGLE equips every commercial reverse osmosis water treatment system with an industrial PLC (programmable logic controller) and HMI (human-machine interface).
Key online instruments include: conductivity meters before and after RO, temperature compensation to 25°C; flow meters for feed, permeate, and concentrate; pressure transmitters for pump inlet and outlet, membrane feed and reject; pH sensor in the feed line; ORP sensor after carbon filter to confirm chlorine removal; and TOC analyzer for pharma-critical applications.
The PLC executes automated sequences: softener regeneration, membrane flush at shutdown, permeate divert-to-drain during startup, and sanitization cycles. Data logging stores trending parameters for at least one year. For regulated environments, we provide 21 CFR Part 11 compliant software with electronic signatures and audit trails.
Remote access via SCADA allows your team to monitor system performance from any location. Alerts for high conductivity, low flow, or high pressure differential trigger emails or SMS messages. Predictive algorithms track normalized permeate flow and salt rejection, flagging when cleaning is needed.
SKE&EAGLE also offers validation support packages. Our IQ/OQ protocols include instrument calibration certificates, weld logs for sanitary piping, and passivation reports. We can execute the protocols on-site or remote witness via live video.
Energy Efficiency and Water Conservation Strategies
Pharma manufacturers face increasing pressure to reduce operational costs and environmental impact. Commercial reverse osmosis water treatment systems traditionally consume significant energy (pumping at high pressure) and water (reject stream). SKE&EAGLE integrates several technologies to improve sustainability.
Energy recovery devices (ERDs) capture pressure energy from the concentrate stream. On large systems, a turbine or pressure exchanger transfers this energy back to the feed pump, reducing electrical consumption by 25–35%. For medium-sized pharma plants, we offer variable frequency drives (VFDs) on all pumps, matching motor speed to production demand.
Permeate flushing reduces chemical cleaning frequency. At scheduled intervals or after each batch, the system automatically flushes membranes with low-pressure permeate, displacing high-concentration reject water. This simple step extends cleaning intervals from 60 to 180 days.
Reject water recycling is possible when the concentrate stream is not chemically contaminated. Clean reject from the second pass of a double-pass RO can be returned to the feed tank of the first pass. Reject from the first pass can be used for cooling tower makeup or floor washing. SKE&EAGLE can design zero-liquid-discharge systems with evaporators for facilities in water-stressed regions.
Our newest skids also feature intelligent standby modes. When the storage tank is full, the system stops the high-pressure pump but maintains a low-flow recirculation loop. This keeps membranes wet and prevents biological growth without wasting energy. Automatic restart occurs when tank level drops below setpoint.
Installation, Commissioning, and Operator Training
Purchasing advanced pure water solutions is only half the equation. Proper installation and commissioning determine long-term reliability. SKE&EAGLE provides turnkey services from site assessment through validated operation.
Before shipment, we require a site utility checklist: feed water flow and pressure, drain capacity, electrical supply (typically 480V/3-phase/60Hz or 380V/50Hz), compressed air for pneumatic valves, and floor space with service access. Our skids are fork-liftable or crane-lifted onto housekeeping pads. Interconnecting piping uses sanitary orbital welding or clamped hoses.
Commissioning begins with flushing of all pipes to remove debris. Membranes are loaded, then the system undergoes a 24-hour continuous run test. We verify setpoints, instrument accuracy, and alarm functionality. For pharma clients, we provide a commissioning report signed by our field service engineer.
Operator training covers: daily visual checks of pressures and flows; how to interpret conductivity and TOC trends; changing cartridge prefilters; preparing chemical cleaning solutions; and emergency shutdown procedures. We provide laminated quick-reference cards for the control panel. Remote support via VPN is available for troubleshooting.
SKE&EAGLE also offers annual preventive maintenance contracts. A certified technician visits your site to replace worn seals, calibrate instruments, verify safeties, and perform membrane cleaning if needed. We maintain a global spare parts inventory for fast delivery.
Frequently Asked Questions (FAQ)
Q1: What is the difference between commercial and industrial RO systems?
Commercial reverse osmosis water treatment systems are designed for capacities of 500 to 10,000 liters per hour with sanitary construction suitable for pharma, food, and beverage. Industrial RO systems are larger (often >20,000 L/h) and may use industrial-grade materials not rated for GMP compliance. SKE&EAGLE focuses exclusively on commercial-pharma systems with full traceability.
Q2: Can a commercial RO water purification system produce Water for Injection (WFI)?
Yes, when configured as a double-pass RO with ultrafiltration or as an RO-EDI hybrid. The USP has recognized RO as a valid WFI production method since 2016. Your system must also include a hot storage loop (65–80°C) or ozone sanitization to maintain microbial control.
Q3: Can your systems be integrated with existing water storage and distribution?
Absolutely. Our PLCs communicate via Modbus TCP, Profibus, or analog I/O. We size RO output and storage tanks to match your distribution loop demand. Retrofits are our specialty—we work with any existing distribution system.
Q4: Do you offer sanitizable RO systems?
Yes. For hot water sanitization (80°C), we supply specialty membranes and thermal expansion loops. For chemical sanitization (ozone or peracetic acid), we use ozone-resistant EPDM and ensure complete drainability. Steam-in-place is available for skids with sanitary clamps.
