A Guide to Water Purification Systems 2

Introduction: Why Clean Water Matters

Water is everywhere. We use it for drinking, cooking, and cleaning. But did you know that for companies making medicine, water must be extremely clean? Regular tap water is not enough. It can contain tiny particles, bacteria, or chemicals that are invisible to our eyes.

This is why a water purification system is so important. It removes these hidden dangers. At SKE&EAGLE, we build special systems for drug factories and laboratories. These systems follow strict safety rules.

In this article, you will learn about the different types of water treatment systems. You will also understand the water purifying machine price for different needs. Finally, you will see why choosing the right purification system can save money and keep people healthy.

What Makes Water “Pure”?

Before we talk about machines, we need to understand what “pure water” means. For drinking, pure water means no bad taste or smell. For medicine, pure water means almost nothing exists except H2O molecules.

In drug making, water must have:

• No bacteria or viruses.

• No endotoxins (harmful parts of dead bacteria).

• No dissolved salts or metals.

• No organic chemicals.

Regular home filters cannot do all this. Industrial water purification system use multiple steps. Each step removes different things. SKE&EAGLE designs these steps carefully to meet drug safety standards.

Think of it like cleaning a very dirty floor. You first sweep, then mop, then dry. You do not skip steps. Water purification works the same way.

The 4 Main Types of Water Treatment Systems

There are many types of water treatment systems in the market. Some are for homes. Some are for factories. Below is a simple table to help you compare them.

1. Reverse Osmosis (RO)

RO is very common. It uses high pressure to push water through a thin membrane. The membrane has very small holes. Only water molecules can pass through. Everything else gets washed away.

RO removes 95-99% of harmful things in water. It is a good starting point for making pharmaceutical water.

2. Deionization (DI)

DI uses special beads that attract charged particles. These beads pull out minerals like calcium and magnesium. The water becomes very clean.

However, DI does not remove bacteria or viruses. That is why DI is usually used after RO, not alone. SKE&EAGLE often adds DI as a final “polishing” step.

3. Ultrafiltration (UF)

UF functions like reverse osmosis, yet its pore size is bigger.But it lets small minerals and salts pass through.

UF works well for water pretreatment before water enters an RO system. It is also widely used in hospitals for kidney dialysis equipment.

4. Electrodeionization (EDI)

EDI is a modern technology. It mixes DI resin with a small electric field. The electricity cleans the resin continuously.

This means no need for dangerous chemicals to clean the system. EDI is the best choice for making purified water for medicine. SKE&EAGLE uses EDI in most of our pharma systems.

How Much Does a Water Purifying Machine Cost?

Many people search for water purifying machine price online. The price can vary a lot. A small home unit may cost $100.Alargefactorysystemmaycost$200,000 or more.

Why is there such a big difference? Here are the main reasons:

1. Size – How much water per hour? More water = bigger price.

2. Materials – Drug factories need stainless steel, not plastic.

3. Automation – Touch screens and data loggers cost extra.

4. Validation – Pharma systems come with papers proving they work.

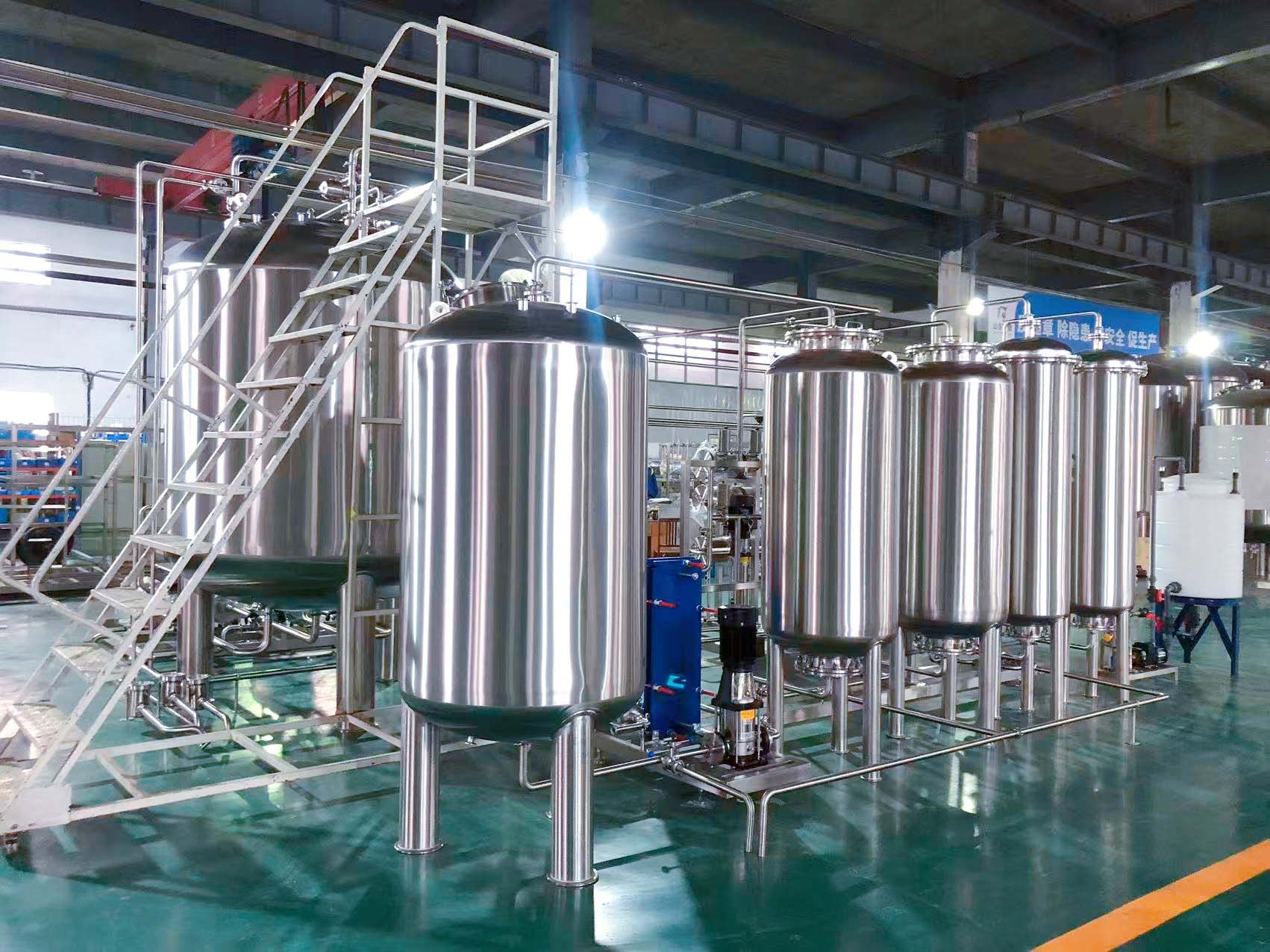

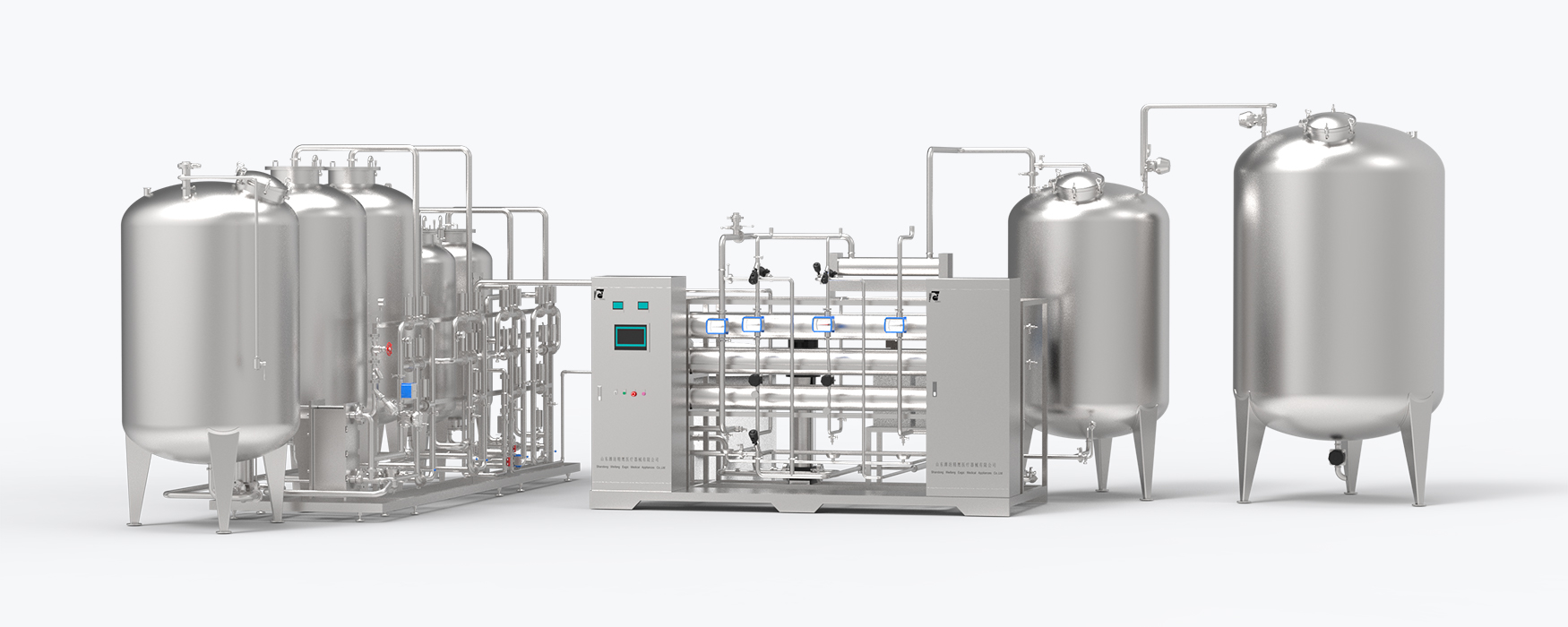

Parts of a Complete Purification System

A real purification system for a drug factory is not just one box. It is a set of connected parts. Each part has a job. Here are the four main parts of a SKE&EAGLE system.

Part 1: Pre-treatment

Before water enters the main machine, we clean it first. We pass it through:

• A sand filter (removes dirt).

• A carbon filter (removes chlorine).

• A water softener (removes calcium).

This pre-treatment protects the expensive RO membrane. It makes the whole system last longer.

Part 2: Main Purification

This is the heart. Water goes through RO, then EDI. At this point, the water is already very pure. It meets Purified Water (PW) standards. SKE&EAGLE uses high-quality pumps and membranes here.

Part 3: Storage Tank

Pure water cannot sit still. If it stops moving, bacteria can grow. So we put the water in a special stainless steel tank. The tank is closed to keep air out. It also has a spray ball inside to clean all surfaces.

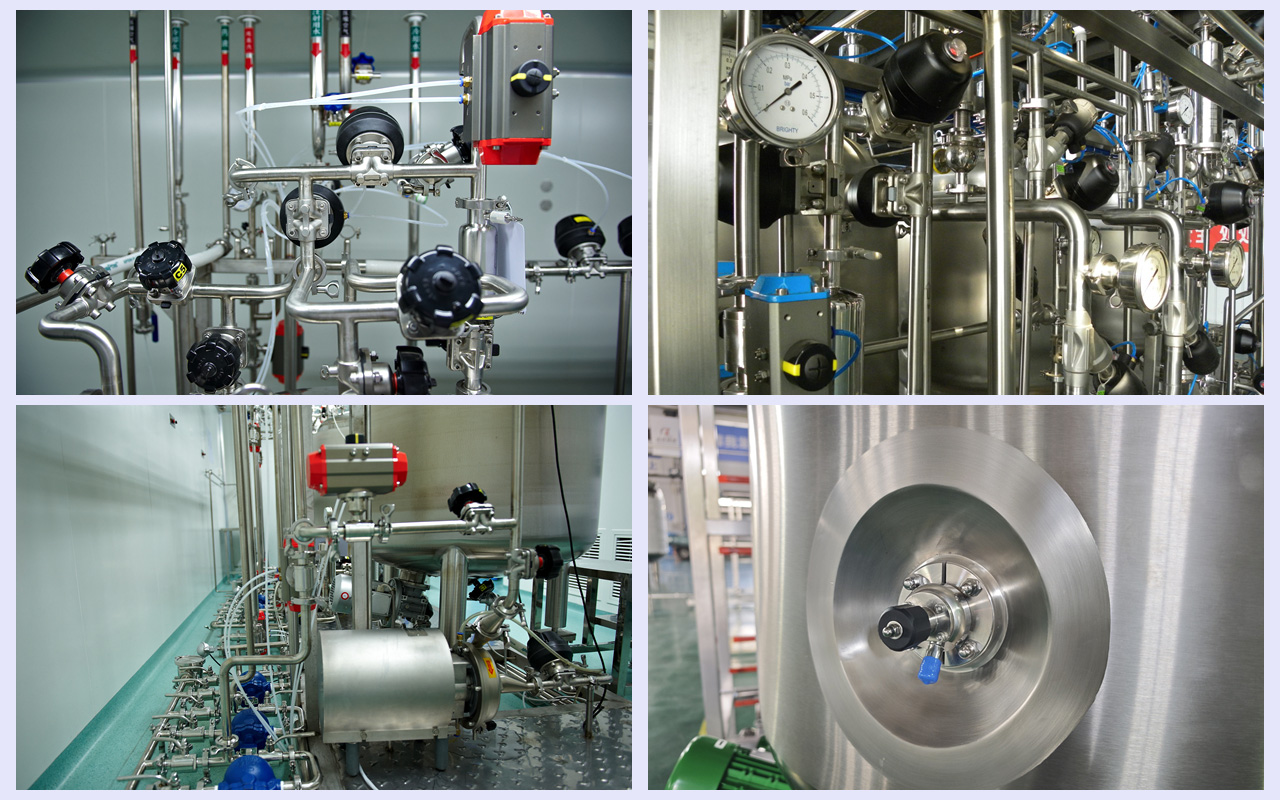

Part 4: Distribution Loop

From the tank, water circulates in a loop to all the points where people need water. The loop never stops. Water flows through pipes and comes back to the tank. This keeps the water fresh. We also add UV lights or ozone to kill any remaining germs.

Why Choose SKE&EAGLE for Your Water System?

You may see many companies selling water systems. Why should you trust SKE&EAGLE?

1. Pharma focus
We do not make home filters. We only build systems for medicine and biotech. We know the rules (FDA, EMA, USP). Every system we make follows these rules.

2. Full validation
When you buy from us, you get a big set of documents. These include Design Qualification (DQ), Installation Qualification (IQ), and Operational Qualification (OQ). These papers prove your system works correctly. Auditors will ask for them.

3. No dead legs
In a water pipe, a “dead leg” is a place where water does not flow. Bacteria love dead legs. Our engineers design pipes so that every part gets flow. This stops biofilm from forming.

4. Remote monitoring
Our smart systems connect to the internet. You can check water quality from your phone. We can also see the data. If something goes wrong, we call you before you even notice a problem.

5. Local support
We have service teams in your region. They speak your language. They can come to your site for repairs, training, or validation.

Frequently Asked Questions (FAQ)

Q1: Can I just buy two small water machines instead of one large system?

A: For drug making, no. Small machines do not have a circulation loop. Water will sit and grow bacteria. Also, small machines cannot provide validation papers. SKE&EAGLE recommends one centralized system for safety.

Q2: How often must I change the RO membrane?

A: Usually every 2 to 5 years. This depends on your feed water quality. If your water is very hard, the membrane may wear out faster. Our system has a sensor that tells you when performance drops.

Q3: Why is the pharma water purifying machine price so high?

A: You are not buying just metal and plastic. You are buying safety, compliance, and documentation. Cheap systems cannot pass a regulatory audit. One failed inspection can cost millions. The investment in a good system protects your business.

Q4: How long does it take to install a pharma water system?

A: From order to delivery, count about 8–12 weeks. On-site installation and testing take 2–3 weeks. Then we train your team for 1 week. SKE&EAGLE works quickly to reduce your downtime.

Q5: What is the difference between Purified Water (PW) and Water for Injection (WFI)?

A: PW is clean enough for most drugs you swallow (pills, syrups). WFI is much cleaner. It is used for drugs that go into your blood (injections). WFI has stricter rules for endotoxins. SKE&EAGLE makes systems for both PW and WFI.
